Microsemi's SmartFusion2 Starter Kit provides designers with access to SmartFusion2 system-on-chip(SoC) FPGAs, which integrate inherently reliable flash-based FPGA fabric, a 166 MHz ARM Cortex-M3 processor, advanced security processing accelerators, DSP blocks, SRAM, eNVM and industry required high-performance communication interfaces all on a single chip.

The SmartFusion2 starter kit supports industry-standard interfaces including Ethernet, USB, SPI, I2C and UART and includes a comprehensive breadboard to support unique design requirements. The kit can be used with Microsemi's Libero SoC v11.0 software, which includes a free Libero Gold license and comes preloaded with a uClinux demo. Emcraft Systems' Linux-based development environment is also supported. The SmartFusion2 device is available on an Emcraft Systems miniature (34mm x 59mm) mezzanine form factor system-on-module (M2S-SOM), which connects to the SOM-BSB-EXT baseboard. The kit is USB powered and includes FlashPro4 programming.

표1. "SmartFusion2 Starter Kit"에 들어있는 내용물 목록

Quantity	Description
1	M2S-SOM SmartFusion2 system-on-module with M2S050-FG896
1	SOM-BSB-EXT SmartFusion2 system-on-module baseboard
1	FlashPro4 JTAG programmer for programming and debugging of SmartFusion2
1	USB 2.0 A male to mini-B Y-cable for UART/power interface (up to 1A) to PC
1	USB 2.0 A male to mini-B cable for connection of SmartFusion2 to PC in USB device ("gadget") role
1	Mini-B to USB 2.0 A female cable for connection of USB devices to SmartFusion2
1	Ethernet cable
1	USB WiFi module
1	Leather case

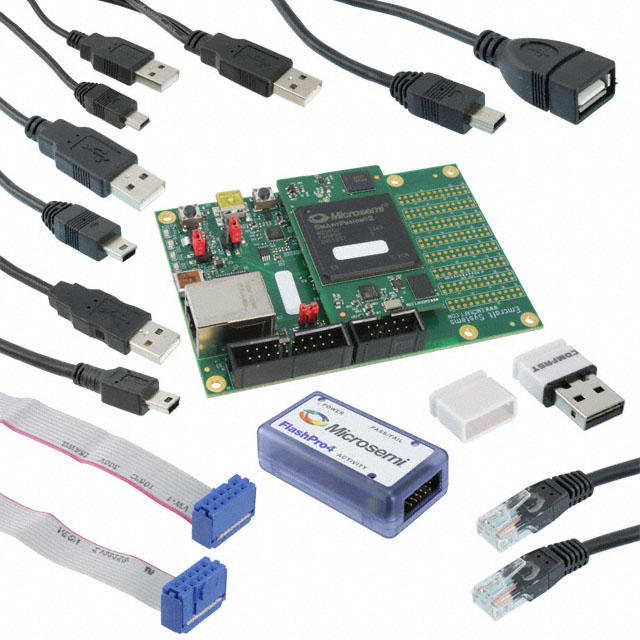

사진1. "SmartFusion2 Starter Kit"에 들어있는 내용물 사진

Note: This Kit also comes with a free Libero Gold software License.
Note: The SF2-STARTER-KIT-ES is RoHS compliant

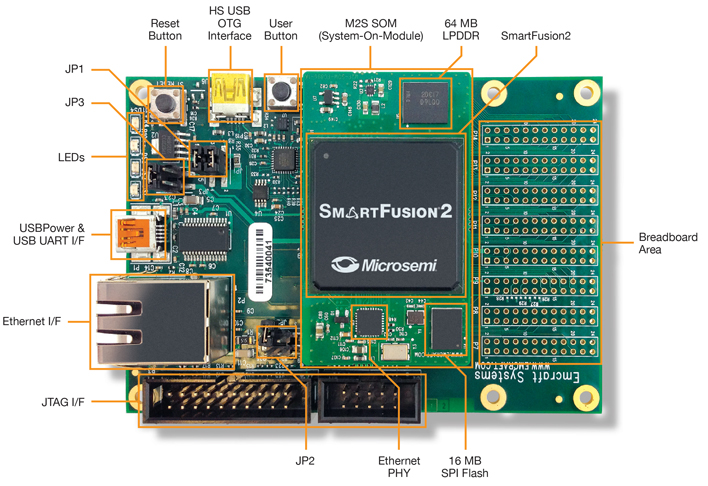

Hardware Feature Overview

• SmartFusion2 SoC FPGA in the FG896 package (M2S050T-FG896ES)
• JTAG interface, for programming of the SmartFusion2 device
• 10/100 Ethernet interface and RJ-45 connector
• USB OTG interface and mini-USB connector
• USB based Wi-Fi Module
• 64MB LPDDR, 16MB SPI flash
• User push-button connected to GPIO on the SOM
• Two user-controlled LEDs connected to GPIO on the SOM
• Breadboard area available for GPIO or FPGA I/O connection
• Power good LED indicating presence of the +3.3 V SOM power
• Reset push button, Reset-out LED
• On-module clocks
• Watchdog Timer (WDT)
• Serial console interface at UART CMOS levels
• Low power mode with fast wake-up times
• Depending on the design, can provide necessary power supply voltages (+5 V, +3.3 V, +1.5 V for power-optimized SOM operation) from external sources through dedicated pads on the breadboard.

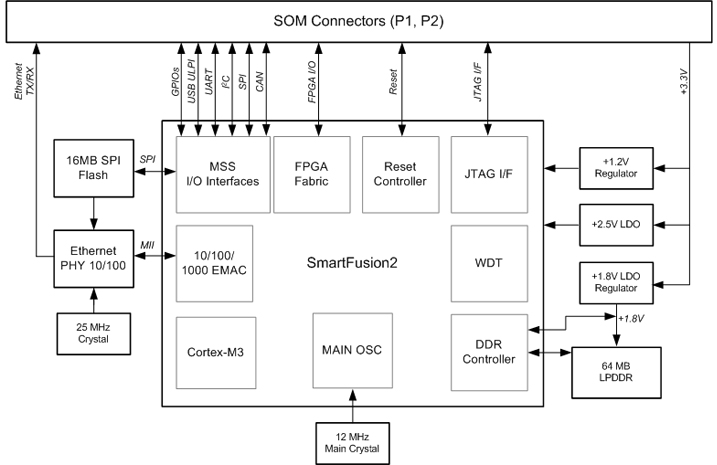

SmartFusion2 System-On-Module (SOM) Block Diagram

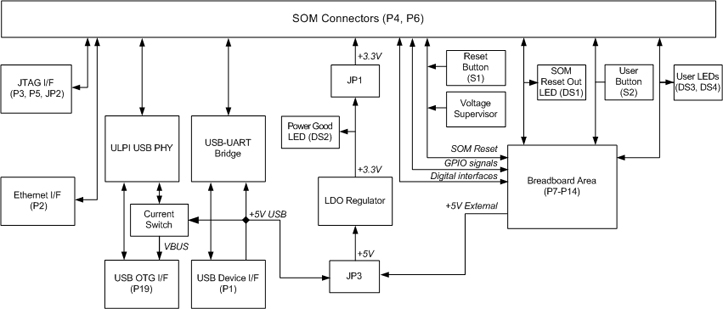

SmartFusion2 SOM Baseboard Block Diagram

---

<< Documents >>

Getting Started

Libero and SoftConsole "Hello, world" demo project for SF2-STARTER-KIT-ES-2 SOM Rev 1A		4 MB	7/2013
Libero and SoftConsole "Hello, world" demo project for SF2-STARTER-KIT-ES-2 SOM Rev 2A		3 MB	7/2013
Libero and SoftConsole "Hello, world" demo project for SF2-STARTER-KIT with PP SOM Rev 2A		3 MB	7/2013
LPDDR Memory Config File		1 KB	2/2013
Running a SoftConsole "Hello, World!" Project on the SmartFusion2 Starter Kit			2/2013
SmartFusion2 Starter Kit Guide		557 KB	7/2013
Starter Kit Versions and Compatibility			2/2013
USB-UART Driver Files - FT232R		1 MB	1/2013

Hardware Documentation

SOM-BSB-EXT Baseboard Hardware Architecture Specification		278 KB	7/2013
SmartFusion2 SOM Hardware Architecture Specification		406 KB	5/2013

Hardware Materials

SOM-BSB-EXT schematics			1/2013
SOM-BSB-EXT Mechanical Drawing		41 KB	2/2013
SOM-BSB-EXT Bill of Materials (BOM)			1/2013
SmartFusion2 symbol and footprint (Altium Designer 9.4)			12/2012
SmartFusion2 SOM schematics			4/2013

Software Documentation

Linux Cortex-M User's Guide		288 KB	7/2013
Libero SoC v11.0 User's Guide		24 MB	2/2013

Software Materials

GNU toolchain for uClinux Cortex-M3/M4			1/2013
Libero Programming File (STAPL) with U-Boot image embedded for SF2-STARTER-KIT-ES-2 SOM Rev 1A		2 MB	7/2013
Libero Programming File (STAPL) with U-Boot image embedded for SF2-STARTER-KIT-ES-2 SOM Rev 2A		3 MB	7/2013
Libero Programming File (STAPL) with U-Boot image embedded for SF2-STARTER-KIT with PP SOM Rev 2A		2 MB	7/2013
Prebuilt Linux image ready to be loaded to the SmartFusion2 SOM board (SOM Revision agnostic)		1 MB	7/2013
Windows TFTP server			2/2013

Customer Notifications

Statement of Volatility for System-On-Module Baseboard		395 KB	2/2013
Statement of Volatility for System-On-Module Rev 2A		964 KB	2/2013

---

<< Training & Demos >>

Webcasts

SmartFusion2 DSP FIR Filter Demo Video (6 mins, 6/4/13)

Introducing SmartFusion2 Starter Kit for SoC FPGAs (59.58 mins, 1/31/13)

SmartFusion2 Overview (12.10 mins, 10/8/12)

Introducing SmartFusion2 SoC FPGAs (10/16/12)

Designing with SmartFusion2 SoC FPGAs (10/30/12)

Reducing Risks With Safety Critical Software (59.58 mins, 1/31/13)

Tutorials

SmartFusion2 SoC FPGA DSP FIR Filter Demo User Guide GUI and Programming File (RAR, 4.4 MB, 4/13)		3 MB	4/2013
SmartFusion2 SoC FPGA Adaptive FIR Filter Demo User’s Guide GUI and Programming Files (RAR, 4.6 MB, 5/13)		4 MB	5/2013
SmartFusion2 ARM Cortex-M3 Lab Guide Tutorial Design Files (ZIP, 22.6 MB, 4/13) Programming File (ZIP, 2.5 MB, 4/13) Tutorial (ZIP, 569 Bytes, 4/13)		2 MB	4/2013
SmartFusion2 Fabric Lab Guide Tutorial Design Files (ZIP, 41.4 MB, 4/13) Programming Files (ZIP, 2.5 MB, 4/13) Tutorial (ZIP, 6.3 KB, 4/13)		1 MB	4/2013
SmartFusion2 USB Lab Guide Tutorial Design Files (ZIP, 23.2 MB, 4/13) Programming Files (ZIP, 2.5 MB, 4/13) Tutorial (ZIP, 40.1 KB, 4/13)		2 MB	4/2013

Application Notes

Accessing I2C Devices from User-Space Applications		12/2012
Adding secure copy and secure shell clients to uClinux		5/2013
Booting uClinux on SmartFusion2 SoC FPGAs in 0.5 Seconds		2/2013
Configuring SmartFusion2 Starter Kit for uClinux Development		2/2013
How Fast is the SmartFusion2 SPI interface running under uClinux?		2/2013
How Fast is the SmartFusion2 TCP/IP stack running under uClinux?		2/2013
Making SmartFusion2 SoC FPGAs Visible as a USB Storage device Using Linux		2/2013
Measuring the SmartFusion2 core current (VCC1V2 net) on SF2-STARTER-KIT-ES		5/2013
Setting the Stack Size for a User-Space Application		12/2012
Using a USB Flash device with SmartFusion2 SoC FPGAs under Linux		2/2013
Using a USB WiFi device with SmartFusion2 SoC FPGAs under Linux		2/2013
Using Keil uVision with M2S-STARTER-KIT		5/2013

---

<< Ordering >>

Ordering Information

Part Number	Description	List Price
SF2-STARTER-KIT-ES-2	SmartFusion2 Starter Kit	$299

Sales Services

• Contact your local Microsemi Sales representative
• Search for Available Stock
• Request a Quote

Buy Now

• Buy online from Avnet-memec
• Buy online from Digikey
• Buy direct from Microsemi SoC Direct
• Buy direct from Arrow Electronics
• Buy direct from Future Electronics



Emcraft Linux Support

Request support by sending an email to This email address is being protected from spambots. You need JavaScript enabled to view it.

• EmCraft Systems

http://emcraft.com/index.php/som/m2s - Additional documentation and resources available on the Emcraft site.



---
