RASSP Methodology Application Note

• Module design
• ASIC design
• FPGA design
• Backplane design
• Chassis design
• Subsystem integration and test

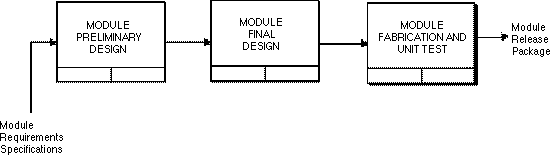

We start the module design process with inputs in the form of the Module Requirements Specification generated by architecture design. The module is the fundamental line-replaceable unit (LRU) for the signal processor hardware. It is the primary focus of testability, reliability, and maintainability analyses.Here the module architecture is partitioned into a combination of existing components and new or existing ASICs. The ASIC design process is spun off at this point as another mini-spiral in the risk driven development process.

ASIC design takes the Type C specification from architecture design, which may have been augmented by module design, and develops behavioral or RTL models of the ASIC using VHDL. This is followed by functional behavioral simulation. Next, we perform detailed design (synthesis) of the ASIC functional blocks, followed by gate-level functional simulation, using the same test vectors and expected outputs as in the behavioral simulation. The behavioral and gate-level simulations must agree 100 percent before proceeding to the next step.

In parallel with ASIC design, we perform the detailed module design involving interactive logic design, simulation, and timing analysis. Functions are partitioned to FPGAs, if applicable, and FPGA design begins as another mini-spiral.

We perform the first module-level simulations using the ASIC behavioral or RTL model(s) developed by the ASIC designers. As the ASIC design progresses, gate-level ASIC models, and FPGA models may be brought into the overall module simulation environment, depending on overall module complexity. A test bench that is usually generated by architecture design is used on the module as a check for correct requirements mapping and implementation. We then perform timing analysis and fault simulation. When the module is deemed correct (functionally and in terms of timing), after the Module Preliminary Design Review, module preliminary design is complete.

FPGA design, also in parallel with module design, involves the development of a programmable logic device from its beginning as a behavioral VHDL model through detailed design, synthesis, place and route, and programming using a device programmer. This process is similar to the ASIC design process.

We start final module design with the physical layout. We back-annotate added signal delays due to module routing to the simulation model, and the perform a complete module simulation. In some cases, we simulate multiple modules at the structural level to test interfaces and a higher level of functionality. The test bench used to stimulate a multimodule simulation is the same as for earlier behavioral simulations. After the Pre-Release Design Review, manufacturing fabricates and assembles the first-piece module and engineering tests it, using the same test vectors used during module simulation. The Final Design Review is held, after which all module documentation is signed off.

Backplane design, which began in parallel with module design, involves determining the intermodule wiring scheme (printed wiring board and/or wirewrap) for the collection of modules, and performing detailed analysis of the signal integrity of the backplane, using transmission line and crosstalk analysis tools.

Chassis design also begins in parallel with other design activities and encompasses the mechanical and electrical design and analysis of the structure that holds the backplane(s), power supplies, cable and harness, I/O connectors, and other miscellaneous hardware. With appropriate CAD tools, the chassis is designed and a 3D model is generated. This model is used to analyze stress, temperature, mechanical tolerances, and dynamic characteristics.

Also in parallel with module and ASIC design, we re-evaluate the chassis mechanical conceptual design approach against the program subsystem-level requirements (B2) specification. We develop a mechanical design concept for the enclosures and electrical packaging, then generate solid models and a C-level specification. This effort requires support from manufacturing for producibility and cost trade-offs. Producibility analysis is built into the mechanical design's early stages. The Preliminary Design Phase refines the chassis design concepts developed during the Conceptual phase. We generate and integrate solid models and detail layouts, where applicable, into overall mechanical design layouts that incorporate key features, interfaces, dimensions, etc., for the particular mechanical design. This reduces risk due to misinterpretation or missed revisions, and provides the up-front discipline and integration to assure a correct initial database during the Preliminary Design Phase. A Preliminary Design Review (PDR) is held following completion of preliminary design and prior starting detail design. At this point, we have completed all detail and interface layouts, selected major parts, identified materials and processes, and completed and analyzed major chassis models. We begin preparing test plans and issue long-lead parts lists to manufacturing. The PDR ensures that these tasks have been satisfactorily completed, preliminary design is complete, and detail designs can be generated from the preliminary design.

In the final design phase for the chassis, we generate the actual detail design and assembly drawings used to fabricate and assemble hardware end-items. Designs are transferred electronically from solid models into 2D or 3D formats used to fabricate hardware without unnecessary modification. Outputs for the Final Design Phase include issue of Release Packages that allow manufacturing and sourcing to efficiently fabricate or procure hardware. A Final Design Review (FDR) is held before issue of the Release Packages to ensure that hardware designs are correct and meet the requirements of the subsystem level specification. The major portion of the mechanical engineering effort is complete following the FDR and issue of Release Packages.

Subsystem integration and test is the last process in the overall hardware design process. We follow a phased integration approach where we integrate fully-tested individual pieces into the next higher level. Initially, we integrate the modules into backplanes, then test them; the tested backplanes are then integrated into frames and tested. The eventual result is a complete, fully tested subsystem. Detailed test procedures are followed in all phases of this process.

• Verify that the function can be implemented on one module with existing technology within cost constraints
• Allocate the logical functions between CPLDs/FPGAs, discrete logic, and ASICs specified by architecture design.

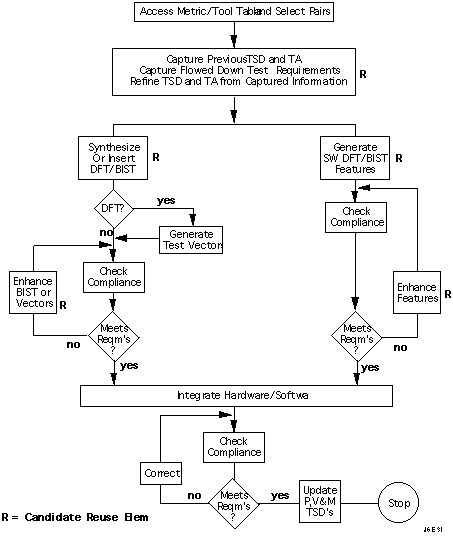

We review the test requirements, testability goals, BIT requirements, and target tester for this module. This step includes fault coverage goals, fault isolation goals, identifying replaceable units (RUs), type of testing to be performed (i.e., functional, in-circuit), type of test machine that will test the module, design-cycle time, tester-cycle time, level of test (module, system), and information on any standard test busses that may be required for the system.

Another important aspect of testability goals is whether and how a circuit must be probed. For example, it may be acceptable to probe a board in factory test (before conformal coat), but probing may not be allowed for field test. It is important to know and analyze all these constraints and requirements before developing a testability concept and plan.

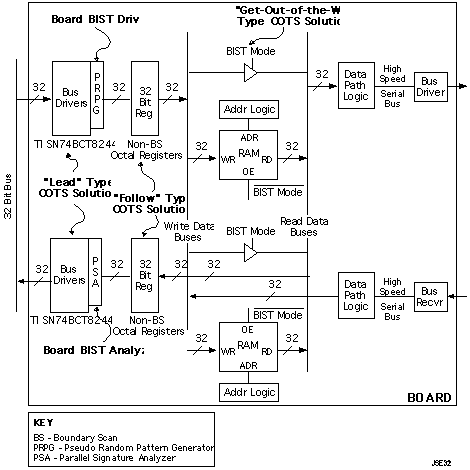

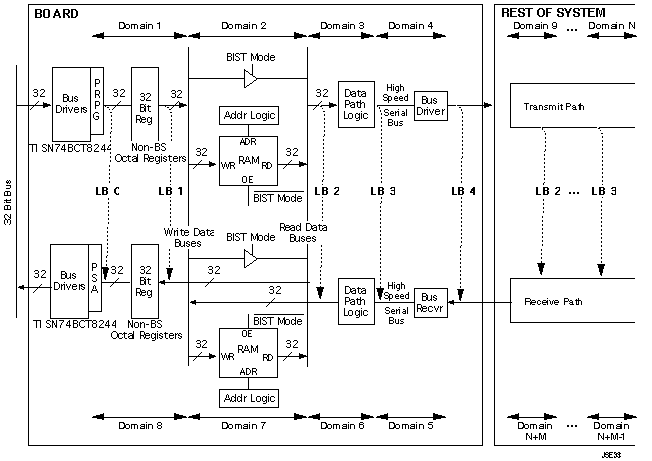

We generate a concept for designing-in testability for this module. As we identify the test objectives, we select the best method for implementation, such as off-line (external stimulus and response), built-in (internal stimulus and response), and self-checking (e.g., parity checking during operation). The output is a preliminary testability concept document that the designers use when performing the detailed electrical design.

We may need to conduct trade-offs with architecture design and backplane designers following this analysis to achieve the desired module requirements. Manufacturing and mechanical engineering should be involved to ensure that the proposed design can be produced within project, technology, and cost constraints. Reliability and maintainability engineering should be consulted so that the overall architecture and parts chosen meet reliability/maintainability needs. Sourcing should be notified of any possible long-lead parts selected to determine if the procurement time for these devices meets schedule constraints.

The first step in designing a behavioral model of a module is to finalize and define, in detail, the interconnections between functional blocks in the block diagram of the module. After we define all the I/O to each functional block, we can then develop the behavioral model for the function or further break the function into smaller blocks. Incomplete interconnection definition increases design time and increases interdependence of functional block designs. A module requiring multiple design engineers should have very accurate inter-block definition; changes of I/O should be immediately documented for hand-off and future review.

When developing the behavioral model, the module design engineer should reflect the inherent structure of the design. If, for example, the module has a pipelined architecture, the pipelines and the functions performed by each pipeline stage should be evident from the model. The purpose is to produce a model with sufficient detail to guide gate-level design.

The design database is continually updated with more detailed descriptions of each function as the information becomes available. The I/O definition of each block is detailed enough to allow independent, concurrent design of each function. We then compare functions to the reuse library functions to eliminate duplication of effort. We enter new, common behavioral models into the library database as they are developed and validated.

Also included in this step is development of the 'tester' model, which applies input vectors to the model and collects and analyzes the results. This is a simple model written in the same language as the behavioral model or a complex suite of programs integrated into a complete simulation environment.

Generating test vectors for a module generally involves more than just specifying bit patterns. In most cases, we must define a 'tester' logic function to generate stimuli to emulate, for example, a bus interface protocol. When a standard microcomputer is involved, the test vectors are limited to the relatively small number of signals needed to reset the processor, plus the (sometimes extensive) firmware that must be downloaded to RAM for subsequent execution by the processor, which in turn generates bus activity, etc.

There are generally two classes of test vectors: functional and production. Functional test vectors verify that the design works as intended. Production test vectors differ from functional vectors in that the production vectors detect manufacturing defects. The functional vectors may also be used as production vectors, but are usually augmented with additional vectors to detect module faults that the functional vectors do not reveal. Production test vectors generally also use any designed-in-test features of the design, such as controllability and observability points and boundary scan. These vectors must also consider the target tester's restrictions, which include simulation speeds, timing limitations of the tester's drive and detect channels, pattern length, and pattern depth.

In this step, we emphasize generating functional test vectors, although some attempt at vectors designed for fault detection can be made. In "Perform Fault Simulation," the designer grades the vector set on its ability to detect module faults. Additional vectors needed to increase fault coverage will be produced in that step.

We perform this step concurrently with "Perform Functional Simulation." As we develop each group of test vectors designed to test a specific function on the module, the simulation is usually run using that group to verify the function instead of generating all the test vectors before running any simulations.

The module designer considers all available options before proceeding with the design process. If the library search produces an existing module that meets the requirements, no further analysis is needed. If an exact match is not made, we can check the library for other designs that could be used, either whole or in part. The library also contains entries that make it possible to contact the original designers, who could be valuable consultants. We use the results from this review of existing designs and the cost goals to determine the actual module design approach.

The Module Requirements Specification, generated primarily during architecture design, is a high-level description of the module being designed. We can generate it after completing a firm definition of the architecture. This document should include the following minimum subset of topics:

1. Functional Requirements
2. Functional Block Diagram
3. Preliminary Parts List
4. Register level Block Diagram
5. Preliminary Layout
6. I/O Pin Utilization
7. Physical Characteristics
8. Environmental Requirements

The module electrical design process presented here assumes that we will simulate modules after the logic schematic is fully captured or the logic synthesized and a netlist generated. A more structured, top-down approach can also be accommodated. The following steps can either be completed for the full design, as shown, or they can be repeated as each functional block of the design is generated during the functional requirements generation step. If a behavioral model was generated previously, mixed-level simulations can be run as the logic for the different functional blocks is generated.

As the detailed design progresses, it should be captured with the appropriate schematic capture tool.

If architecture design specified the use of any ASICs, any additional ASIC requirements must be provided to the ASIC designers in the form of additions to the ASIC Requirements document produced by architecture design.

We must now refine the testability features of the module introduced in the conceptual design. Additional hardware may be required to provide for testing of all functions.

Information is also required regarding the target module tester. This data minimizes the amount of translation required when the production test vectors are generated. This data should include information about restrictions on device names, signal fan outs and loading, and power and ground pins (for standardization of test fixtures).

Representatives from mechanical engineering and manufacturing should be consulted during this step. The mechanical engineer can help with power dissipation and the distribution of heat across the module. These issues can affect parts placement. Manufacturing and mechanical engineering can handle other concerns related to parts placement, such as the minimum distance parts can be placed from each other, and the positioning of Pin Grid Array (PGA) devices so that solder inspections can take place.

We begin the timing analysis by identifying the design's critical paths. A path for this analysis is the set of wires and components between any two pins in the design. A timing path is one that begins at the module's primary inputs or any internal register's outputs and ends at the module's primary outputs or any internal register's inputs. The path delay is the accumulation of propagation times through each wire and each component on the path. Note that the propagation delay through a component is not a constant, but is a function of the capacitive load on the driving pin. The critical paths of a design are the set of timing paths that have the greatest path delay values, and thus determine the limit of the design's timing performance.

We use a static timing analyzer for timing analysis in this step. The static timing analyzer differs from a simulator primarily in that the analysis is independent of the stimulus applied. A static timing analyzer determines the path delay for every timing path in the design, and analyzes each for timing violations similar to those identified by the simulator. Timing problems are identified by timing violation reports. One advantage of the static timing analyzer versus the simulator is that it identifies timing problems and critical paths that are not sensitized by the input stimulus. A disadvantage is that it often reports many false timing errors that would not occur in the actual module.

Critical path analysis using a static timing analyzer provides a quick approach to finding timing problems in the design, such as setup or hold time violations. It does not find all timing problems, especially those involving complex CPLD or controller designs. A worst-case timing analysis that uses a comprehensive set of functional test vectors may be required to broaden the timing analysis.

Loading analysis determines the electrical loading on the outputs of module devices, and includes DC and AC components. A device's DC loading is affected by DC current from other devices that flow through its output. A device's AC loading is related to the capacitance presented to its output due to the capacitance of other devices and interconnections connected to it. Excessive DC loading can cause power dissipation to exceed device specifications; excessive AC loading can cause timing problems and signal distortion.

We send the results of the analyses to various other members of the overall subsystem team: thermal analysis data to mechanical engineers involved in the design of the cooling system; and power and loading data to the backplane designer specifying power supplies and interconnecting modules in the system.

The purpose of this step is to simulate the module to test its basic functionality, using the previously-generated test vectors. ASICs, if present, will be modeled behaviorally or with hardware models. We use worst-case timing values for all components. We also broaden the timing analysis by performing a worst-case minimum/maximum timing analysis using test vectors and the simulator.

For the timing analysis, we use the simulator to simulate the minimum and maximum delays of components simultaneously. When an input to a component changes, two transitions are scheduled on the component outputs. The first transition is to an unknown state and occurs with the minimum propagation delay. The second transition is to the final state, which occurs with the maximum propagation delay for the component.

Simulation output reports all functional timing hazards, such as setup and hold-time violations, illegal edge violations, and excessively 'long' signal paths based on user specifications. Also reported are structural timing hazards (circuit problems arising from the structure of the circuit).

Once the gate-level design is complete, we must verify the accuracy of the design. The first step is to perform a gate-level functional simulation. This is similar to the behavioral model functional simulation performed previously, except that we use the gate-level design database for simulation rather than the VHDL model. The functional simulation is also concerned with the timing of the gate-level design. The purpose is to verify the functional correctness and timing of the logic.

Mentor's QuickSim II has a mixed-mode capability that allows VHDL and gate level representations to be simulated in the same design simultaneously. Because of this, it will probably be common to perform this step in parallel with the interactive logic design. We compare the output of the detailed gate-level simulation with the previously-verified behavioral simulation to determine the functional correctness of the detailed design. We must isolate discrepancies between the two models and correct them until both simulations produce the same results.

We can design a subset of the entire VHDL model at the gate level and verify it using the test vectors we developed during the behavioral model functional simulation. Once this function is verified, we design the next function at the gate level and verify it, and so on until the entire design is complete.

The results of a fault simulation often indicate design areas that are inadequately tested and that require additional or modified stimulus to fully test. We use this information to create an adequate set of test vectors to fully test the module and also to identify a reasonably small set of potential failures through the fault dictionary. The test engineer who constructs the module test program uses these vectors, and the associated fault dictionary, to construct the test program concurrently with the module design.

The fault simulation process involves running multiple logic simulations, but each simulation has a fault introduced into the design before it begins. If the response from the faulted simulation differs from the response of the ideal simulation, the fault is either detected or potentially detected. The fault is detected if the response of the ideal simulator was a ' 1 ' while the response of the faulted simulator was a ' 0 ' or vice versa. The fault is potentially detected if either simulator's response was unknown while the other was known. The fault coverage is the percentage of all faults that are detected.

Many types of faults, such as opens, shorts, and faults internal to components, are possible in the physical module. It is impractical to simulate all types of possible faults, so we usually limit a simulated module fault to a pin on the module that is grounded or connected to power.

If the fault coverage for the set of test vectors does not meet project requirements, we generate additional test vectors to meet the requirement.

A designer should include at least the following data items:

1. Parts List
2. Block diagram
3. Logic schematic
4. Module layout
5. Timing diagrams
6. Functional Description
7. FPGA description
8. ASIC description
9. Results of all analyses (power, thermal, timing, reliability, testability, etc.)
10. Interface Protocol Timings
11. Power Requirements and Consumption
12. Simulation Results and Data

8.1.2 Final Design Phase

8.1.2.1 Module Place and Route

8.1.2.2 Update Module Preliminary Design Document

We use a transmission line analysis tool at this point. This tool predicts delays, waveform distortion, and ringing due to transmission line effects. Crosstalk, the coupling of signals from one interconnection path (net) to another, is also evaluated with a suitable tool. The engineer can correct these problems by adding terminations, changing parts placement, and making other changes. We must evaluate the impact of any design changes on the module's cost, manufacturability, reliability, and testability.

Also in this step, we produce the test database, which is the set of test vectors/expected responses in the correct format to drive the module tester. If the simulation is properly designed, in this step we simply reformat the existing simulation vectors. It is therefore important to design the simulation so that the simulation vectors can be easily used for module test.

We use the module test procedure and module test database, along with the post-processed vectors, to generate the necessary files and procedures for the target tester. We then verify the test program on the target test system. Any changes that may be necessary are reflected back into the module test procedure and/or simulation database. Any conceptual changes are noted in the Testability Document and the Design-for-Testability Design Review Checklist, if necessary.

We evaluate the estimated module recurring engineering costs against cost goals and report actual productivity data at the review.

Fabricate First-Piece Module - Manufacturing or an outside supplier fabricates the first-piece module.

Assemble First-Piece Module - We assemble the first module by inserting components in this step.

First-Piece Module Engineering Test - During this step, we test the first module using the module test equipment according to the test procedure document. We perform design verification in which we check timing, performance under variations in voltage and temperature, and other design performance criteria. Design verification determines if the design will meet environmental requirements. If any problems with the design are discovered, the module design engineer makes any design changes needed to correct them.

We test and characterize the module on an automatic tester. All tests are performed over the full voltage and temperature ranges. Module characterization measures all electrical parameters. We analyze the data to determine module quality and capability.

The ATE test vectors used in the functional and parametric tests are finalized to incorporate any adjustments needed to satisfy module, adapter, and tester interfacing anomalies. We analyze module test results to determine the integrity of the module-to-tester interfacing.

Update Documentation and Release Package - The first-piece module engineering test may reveal deficiencies in the design that need to be changed. If this is the case, then a documentation and Release Package update is needed.

Conduct Final Design Review - The FDR is the last design review of the completed engineering drawing package for the module. We check all details of the engineering documentation being released. This review is crucial, because any errors/discrepancies in the release package that are not found will affect production of the final system. There may be a large number of this type of module in a system, so the effects of an incorrect release package can be great.

Engineering Signoff - After the FDR, engineering signs off the drawings for release to the drawing system. The module design cycle is now complete.

In the third phase, we fabricate and test the chip with the ASIC supplier. The ASIC design process is detailed in Figure 8 - 2.

Critical to success of the ASIC design process is generating an accurate specification, following DFT practices, performing multi-level simulations, and conducting thorough design reviews.

We may have to conduct tradeoffs with architecture and module designers following this analysis to achieve the desired ASIC requirements. Manufacturing and mechanical engineering should be consulted to ensure the proposed design can be produced within project, technology, and cost constraints. Reliability engineering should be involved, along with the supplier, to ensure that the fabrication process and packaging meets specified reliability requirements. The test engineer can provide information on the IC tester requirements and limitations.

• Search RASSP Design Reuse Library - We search the RASSP design reuse library concurrently with preliminary analysis/design to determine if an existing (legacy) design meets the requirements specified for the target ASIC. This step is most likely to be performed during the initial proposal phase of a design, when the subsystem designer attempts to configure the subsystem and calculate the cost.

• Generate the ASIC Design Specification - We generate an ASIC Design Specification that specifies the functional, timing, testability, and testing requirements for each unique microcircuit. This specification should combine the ASIC requirements from the subsystem/module design with the results of preliminary analysis and design to produce a complete description of the ASIC for use in behavioral and gate-level design.

• Develop ASIC Behavioral Model - All ASICs are an integral part of a larger system and perform some unique subsystem function. In some cases, the architecture designer modeled the unique subsystems using a high-level hardware description language to gain confidence that all functional blocks will interact properly. In these cases, each subsystem partition (i.e., the chip definition) should have had a high-level model developed that can be used by the ASIC designer as the starting point for behavioral model development.

  When developing the behavioral model, the ASIC designer should reflect the inherent structure of the design. If, for example, the ASIC has a pipelined architecture, the pipelines and the functions performed by each pipeline stage should be evident from the model. The purpose is to produce a model with sufficient detail to guide gate-level design.

  In this step, we also develop the 'tester' model, which applies input vectors to the model and collects and analyzes the results. This may be a simple model written in the same language as the behavioral model, or a complex suite of programs integrated into a complete simulation environment.

• Generate ASIC Test Plan - The ASIC designer prepares a detailed test plan that has two functions. First, it details the step-by-step procedure to verify the functional operation of the behavioral model. This includes the function(s) to be tested, the method and order of testing, and the data to be used. Second, it details the procedures to test the final ASIC devices on an IC tester. This includes all parameters to be tested, the test conditions, the vectors to be used, and the test limits. Timing diagrams for all inputs are included in a format compatible with the target tester. The test vectors are developed during chip simulation and provided to the test engineer along with the Test Plan document.

• Generate ASIC Test Vectors - We usually perform this step concurrently with the behavioral model functional simulation. Using the test plan as a guide, the ASIC design engineer generates vectors to test the functionality of the behavioral model. These vectors are used later in the gate-level and fault simulations.

• Perform Behavioral-Level Functional Simulation - We simulate the behavioral model of the chip to verify that its performance meets the architecture and module requirements. This effort may be performed jointly by the module design engineer and the ASIC design engineer to ensure full coverage of all architecture and module requirements. It is quite common for the module designer to discover design flaws in the module simulation that are difficult to detect in a single-chip simulation. This may include the detailed interaction of the ASIC during module reset or instruction-abort procedures. By providing the module designer with the latest version of the behavioral model, potential errors can be discovered before module integration and test.

• Update ASIC Design Specification - We update the ASIC Specification as required to reflect the results of the behavioral simulations. In particular, we add the final verified version of the behavioral model to the ASIC Design Specification. In addition, we update any other sections of the ASIC Design Specification that have changed, including the functional block diagram, the instruction set architecture, and other details that may change during the model development.

• Perform Interactive Logic Design/Synthesis - The ASIC design engineer performs the detailed logic design, either by capturing the logic interactively or by using logic optimization and synthesis tools that take VHDL as an input. Logic design usually follows a bottom-up approach, where we develop and verify simple logic functions, and create successively larger functional blocks from these smaller blocks.

• Perform Testability Analysis and Generate Additional Test Vectors - In parallel with the interactive logic design, the ASIC design engineer performs a testability analysis on the preliminary netlist. The purpose of this step is to identify sections of the gate-level design that, because of controllability or observability constraints, may be difficult to test. The ASIC designer may then wish to develop dedicated test logic for these problem areas.

  If additional logic is developed in this step, the ASIC designer updates the behavioral model to reflect the new functions, and develops additional test vectors to test the new logic. These vectors, combined with the behavioral vectors, form the nucleus of the final set of test vectors for the chip, and fully exercise all functions of the chip. The updated behavioral model is sent to the module engineer for module simulation.

• Perform Gate-Level Functional Simulation - Once the gate level design is complete, we must verify the accuracy of the resulting netlist. The first step is to perform a gate-level functional simulation. This is similar to the behavioral model functional simulation performed previously, except that the gate-level netlist rather than the VHDL model forms the simulation database. The functional simulation is not concerned with the timing of the gate-level design. The purpose is to verify the functional correctness of the logic.

  We use a simulator that has a mixed-level capability that allows VHDL and gate-level designs to be simulated in the same design simultaneously. Because of this, it will probably be common to perform this step in parallel with the interactive logic design and synthesis. We can translate a subset of the entire VHDL model to a gate-level netlist and verify it using the test vectors developed during behavioral model functional simulation. Once this function is verified, we can translate the next function and verify it until the entire design is complete. The final gate-level design produces the same results as the behavioral model for a given set of test vectors.

• Compare Behavioral Versus Gate-Level Simulation Results - The ASIC design engineer compares the output of the detailed gate-level simulation with the previously-verified behavioral simulation to determine the functional correctness of the detailed design. The ASIC design engineer must isolate and correct discrepancies between the two models until both simulations produce the same results.

• Perform Gate-Level Timing Analysis - The ASIC designer performs a timing analysis simulation on the chip design, or portions of it. The designer compares the results of the analysis with the requirements imposed by the device specifications. There are two ways to assess the performance of the electrical design. The first method is to use a critical path analysis tool to identify critical paths. The second method is to put timing information in the gate-level models and perform functional simulation. This can identify setup, hold, and other timing violations.

  In this step, we assume accurate timing information is available from the supplier, including loading and wire length estimates. In addition, many suppliers have special macrocells or megafunctions as part of their cell libraries. To perform accurate timing analysis at this stage in the design cycle, the timing analyzer must have access to the timing information for any supplier specific functions. If this is not the case, it may be necessary to delay this step until after the design has been translated to the supplier format.

  Since the timing results from this stage are only estimates, the designer should not attempt to squeeze the last nanosecond out of the chip performance in this step. The purpose is to identify obvious problem areas, and make the changes necessary to get the performance as close to the requirements as possible. The detailed timing analysis will be done on the supplier toolset.

  There are usually be two types of changes required to increase performance. The first type is fine-tuning the gate-level design, such as replacing a carry look ahead adder with a carry select adder. We can make this type of change to the netlist only, since the basic structure and functionality are not affected. The second type of change is a major architectural restructuring, such as adding a pipeline stage. We make this type of change to both the netlist and the behavioral model. In both cases, we rerun the functional simulation to verify that the changes did not affect the functional operation of the design.

• Perform Fault Grading/Fault Simulation - The ASIC designer performs a fault analysis on the functional test vector set, and generates additional vectors until the final set of test vectors provides some predefined fault coverage. As in module design, fault simulation serves two purposes. The first is to provide some quantitative measure of the quality of the test vector set. The second is to obtain a set of vectors that detect flaws in the fabricated device.

• Conduct Preliminary Design Review - After completing the ASIC design, and before committing the design to the supplier for pre-layout simulation and signoff, we conduct a PDR to provide a detailed critical technical evaluation of the ASIC design and to resolve any outstanding issues. All disciplines that interact with module design should have representatives present at this review.

• Translate Design Database to Supplier Format - Most suppliers require the netlist and test vector set in a particular format. We can translate at either the designer's or the supplier's facility. The ASIC designer must also generate any other data about the chip required by the supplier.

• Perform Preliminary Layout (Floorplanning) - Many suppliers allow the designer to perform a preliminary layout or floorplan at this stage. This allows the designer to place major functional blocks of logic on the die, and to assign the ASIC I/O signals to the physical pins of the ASIC package. This step serves two main functions. First, it provides the supplier with a routability analysis of the ASIC. This determines how easy or difficult it will be to perform detailed layout. Most suppliers require a certain routability number before they accept the design for layout. The ASIC designer may have to delete gates or use the next larger die size if this number cannot be reached. Second, it provides updated delay results based on estimated wire lengths from the placement of the functional blocks of logic and the location of the I/O pads. This new delay information provides more precise estimates of the chip performance.

• ASIC Supplier Simulations and Other Supplier Specific Steps - All suppliers require a set of simulations and procedures to be completed before accepting a design for layout. At a minimum, this includes a functional simulation, and timing analysis using the estimated wire length data from the floorplanning performed in the previous step. The functional simulation verifies the functional operation of the design by comparing the supplier simulation results with those from the simulator being used by the designer. The timing analysis includes critical path analysis and setup and hold-time violations for minimum/maximum conditions. In addition, the I/O delays can be calculated with various external loading parameters.

  The exact set of requirements varies according to the supplier, but the following additional simulations are commonly required. Design verification simulation checks the design for proper design rule use. A test file is usually produced that converts the test vector set into a format compatible with the supplier's test facility. A toggle test verifies that the vector set toggles every net in the design at least once. The parametric simulation is used to verify proper voltage levels and/or drive current in the I/O signals.

• Compare Supplier Simulation Results to Contractor Results - We perform this step to correlate the supplier's simulation results with our simulation results to verify functional equivalence across the two sets. Discrepancies should be isolated and corrected so that the two simulation environments produce the same results.

• Conduct Pre-Release Design Review - We review the final design to verify that all subsystem and module functional and performance requirements will be met. We examine the results of the supplier simulations and discuss any concerns. This includes all performance-related issues, including special critical path routing requirements, minimum/maximum timing, and special layout concerns such as the clock tree. The Module Designer examines the final bonding diagram, and the supplier certifies that all pre-layout requirements have been met.

• Prepare ASIC Release Package - The ASIC designer prepares a Release Package containing all the information necessary for the supplier to fabricate, assemble, test, and deliver the ASIC devices. A minimum set of requirements for this document should include a netlist, test vector set, bonding diagram, packaging information, quality level of the ASIC (MIL, Commercial, etc.), performance requirements, and I/O drive capability.

• Perform Detailed Layout - We perform the detailed layout at the supplier's design center or fabrication site. Using the information from the netlist, the floorplanning, and the bonding diagram, we place and route the detailed netlist using an automatic layout tool. This process does not actually result in the physical device, but in a description of the final ASIC routing mask. This provides detailed, accurate data on the lengths of every net in the design to be used in the next step.

• Perform Post Layout Simulation - Using the detailed wire length data from layout, the ASIC designer reruns the functional and timing analysis simulations to verify that all performance requirements are met. This step is basically a repeat of the ASIC supplier simulations performed previously; the only difference is that we replace the estimated wire length parasitics with the actual layout parasitic data.

  If the performance does not meet the requirements, the designer makes changes and sends the new netlist back to the supplier for layout. This process continues until the performance is acceptable.

8.2.3 ASIC Fabrication and Unit Test Phase

• Fabricate, Assemble, and Test ASIC Device(s) - The ASIC supplier fabricates, assembles, tests, and delivers the specified number of prototype devices.

• Perform Final In-House Test - The ASIC test engineer, using an in-house IC tester, performs final test and characterization procedures on the prototype devices according to the ASIC Test Plan. The vectors used for this step should be the same as those supplied to the supplier.

The FPGA process described here is kept generic intentionally and may be applied to various classes of programmable logic devices including Field Programmable Gate Arrays, Complex Programmable Logic Devices (CPLDs), and Erasable Programmable Logic Devices (EPLDs). The inputs to the FPGA process are a Requirements Specification, which usually is a part of a higher-level module (board) Requirements Specification and a VHDL behavioral model of the FPGA function. Major outputs from the process are a fusemap used to program the device and test vectors used to verify the functionality of the design. The design can be divided into three phases: Preliminary Design, Final Design, and Programming and Unit Test. These phases depicted in Figure 8 - 3 are described in the following paragraphs.

Functional Design --- The purpose of this step is to refine an existing VHDL behavioral model of the FPGA function in sufficient detail so that it can be synthesized down to the specific programmable function unit level. The VHDL behavioral model is generally provided by the architecture definition process or by the module/MCM design process. The FPGA requirements document should contain the behavioral model, any requirements derived from module design, such as real estate restrictions, timing requirements, power restrictions, or any other module-related information.

Three styles of design entry using VHDL are possible: behavioral, Boolean, and structural. Tabular descriptions are also possible. A complex VHDL design can be built by successively combining building blocks in related layers. Up to this point the designer has not implied any particular hardware. The assumption is that he has captured the scope of the design into one abstract level VHDL description. This description may be realizable in a broad range of hardware devices. Memory, interface, microprocessor, one or more programmable logic devices, and a variety of other integrated circuits may be required to realize the design. Therefore, the design must be decomposed into those specific devices which the designer chooses for realization.

Using a CAE tool the designer can explore the variety of device implementations by interactively varying design criteria - including cost, preferred parts, device count, speed, and power - to find an optimum design solution.

Assuming that partitioning has been performed and a particular FPGA has been selected for a certain function, further decomposition tasks must be performed. Clocks may have to be connected to a clock distribution network and high fanout inputs must be connected to high drive input cells, if desired.

Functional Verification --- During this step the refined FPGA behavioral VHDL model is verified to ensure that it meets functional and performance requirements. This is accomplished by performing a functional simulation using the VHDL FPGA model. The Testbench used for this verification should be the set of test vectors passed down from module design or architecture design, usually augmented by the FPGA designer. Outputs from the simulation are compared to the expected values passed down from the module designer or architecture design.

Logic Design / Synthesis --- After functional verification of the behavioral model the FPGA is synthesized from the refined behavioral model. Synthesis is the transformation of the design input at a high level of abstraction to a lower level. The VHDL description is turned into an unoptimized Boolean level description of the design. This unoptimized Boolean description is flattened, that is, it has no hierarchy and all intermediate variables are removed. At this point the design is not device-specific and is in a sum-of-products form. Next, the synthesized design is transformed into a device-specific netlist. This netlist is passed to the place and route tool.

Placement and Routing --- This step involves the actual placing and routing of the design into the actual device. The place and route software accepts the output of a technology mapper and generates a file for use by the programming equipment and a timing model for use by downstream analysis tools. The place and route determines the actual cell choice for each logic function to be implemented and the wire connections for the signals which pass and from the logic cells and I/O cells. Once the place and route is completed, a performance analysis is usually done to verify that the design will meet expected performance.

Functional and Timing Simulation --- After place and route of the target design, it must be resimulated with backannotated delays to verify that it still functions as expected. A full timing gate-level simulation model is assembled using the backannotation delay information. Test vectors generated for verifying the behavioral VHDL model are used to exercise the model. The resulting post-route simulation outputs are compared against the simulation results generated during the functional model verification. Once validated, the full-timing gate-level model can be made available for use in module-level simulations.

Fault Simulation --- A fault simulation can be optionally performed on the FPGA gate-level design to detect stuck-at-one, stuck-at-zero fault conditions. The procedures for this fault simulation are the same as those for the ASIC design process.

Refine Test Plans/Procedures --- The detailed test plan and test procedures for the FPGA are refined as necessary. The plan describes the method and the procedures define the step-by-step the instructions to be used to test the device standalone, before it is inserted onto a module.

Conduct Design Review --- This design review is optional, and usually is made part of the module design reviews. This review provides a detailed technical evaluation of the FPGA design function and performance, and serves as the focal point for identifying any outstanding issues. The design review is conducted in accordance with local policies and procedures. A detailed design package is generated by the designer for inclusion in a module-level design review.

8.3.3 FPGA - Program Device and Unit Test

8.4 Backplane Design Process

There are several terms which are used interchangeably when describing backplanes; these terms include "backpanel" and "motherboard". Although "backplane" and "motherboard" are sometimes used to differentiate between wire wrap and printed wiring, respectively, there is no industry wide standard for these terms. This document will refer to "backplanes" only.

Commercial or Industry Standard backplanes, such as VMEbus or Multibus II, are backplanes which have been manufactured to a specification or standard, with some or all pins predefined, and are available off the shelf.

The backplane design process described here applies to the design of custom backplanes of varying complexities with wirewrap and/or PWB interconnections. It may also encompass the design of backplanes that use off-the-shelf or modified, off-the-shelf backplanes as the basis for a new design. The backplane design process flow is detailed in Figure 8 - 4.

Partitioning can significantly affect the size and complexity of a backplane. Poor partitioning can increase the number of layers and thus the cost of the backplane, while good partitioning can efficiently use the available space and minimize the number of layers or wiring. Poor partitioning can also lead to noise problems due to long signal runs or wire lengths.

A commercial/industry standard backplane fits the COTS philosophy. It requires no manufacturing time and minimal lead time, and a standard backplane can be chosen so that interface problems in a system can be minimized. It does, however, limit the user to the system functions that are provided in the standard.

Commercial or Industry Standard backplanes have many pins predesignated, and some that are user-defined. It is important for the designer to understand which of the pins are predefined by the standard, and which are left for the backplane designer to designate; obviously, the designer should not use any of the standard-defined pins for uses other than what the standard intended.

• Perform Backplane Detailed Electrical Design - We complete this step when the backplane design engineer determines the partitioning of printed circuit interconnects and wirewrap interconnects on the backplane and establishes a power distribution approach. With this information in hand, the engineer uses a workstation to interactively perform the preliminary partitioning of the backplane schematic design. It is at this stage that the final details of the schematic design must be captured. Signals must be analyzed to determine the signals to be interconnected by PCB and the signals interconnected by wirewrap. Module preliminary placement should consider such things as estimated power dissipation by the modules, voltage requirements, and interconnectivity.

  Detailed design work proceeds at this point, based on the design concept. This task includes input/output definition and the design of timing/control functions.

• Develop Backplane Test Plan and Test Procedures - We generate a detailed test plan and procedure for functional and parametric testing. The plan should contain strategies for all test types, parameters, methods, conditions, and special resources required. Evaluation procedures should include critical signals to be tested and characterized, ands signals to be checked for cross-talk, reflections, etc.

• Perform Preliminary Electrical Analysis - Preliminary electrical analysis consists of evaluating and simulating critical signals on the backplane based on loading characteristics, worst-case signal lengths, and signal interaction. This step helps determine module placement, drive characteristics, and interface requirements by allowing early characterization of critical signals.

• Generate PWB/Wirewrap Netlists - In this step, we extract preliminary PWB and wirewrap netlist data from the schematic design database created during backplane interactive logic design. The objective is to extract all design data from the schematic design database and to generate an ASCII file representing the design.

• Conduct Backplane Preliminary Design Review - After completing the detailed design of the backplane, and before committing the design to PWB layout or wirewrap wiring, we conduct a Preliminary Design Review. Participants include the project manager, the subsystem design engineer, the local Design Review Board, and the backplane design engineer. In addition, all disciplines that interact with backplane design should have representatives present at the review.

  The purpose of this review is to ensure that the functional requirements of the backplane specification have been met. It will provide a detailed critical technical evaluation of the functional electrical design, and we will resolve any outstanding issues.

• Design Printed Wiring Board - Designing the PWB portion of the backplane includes optimizing placement of the module connectors and the interconnecting printed wires. The complexity of this dictates whether we apply rules during place and route or during the analysis process after routing. The activities are a joint effort between the backplane design engineer, the PWB layout specialist, and the subsystem engineer.

• Perform Electrical Analysis of PWB - Effective backplane system design requires balancing signal density against electrical performance, cost, mechanical reliability, and producibility. As the clock frequency increases and signal rise times decrease, backplane interconnections become more complex and can no longer be considered as 'short circuits.' A basic understanding of transmission lines is vital to analyze and improve these interconnections.

• Generate Artwork and Manufacturing Tools for PWB Fabrication - We generate the artwork and manufacturing tools necessary for fabricating the PWB.

• Perform Wire Wrap Place, Route, and Electrical Analysis - We perform this step to convert the wirewrap netlist into a connection list without routing and levels. The primary function of this processing is to break up the list of pins in each net into a discrete set of wires. We perform circuit analysis to verify that the resulting circuits are functionally correct, i.e., each net contains one output, clock wire length is not less than the longest wire, etc.

  Once we have processed the wirewrap netlist, we route and level the wires using the user-specified rules for optimizing parallelism, line reflections, and wiring density. Wire routing entails searching for the optimum routing path while considering the electrical interaction of wires that were previously routed. For wires that fail the allowed criteria for parallelism, the design engineer can automatically convert the single wires to grounded twisted pair, or manually designate a different route for the wire.

  After we complete routing and leveling for each wire, the wire connection list contains the necessary information to generate manufacturing tools.

• Conduct Backplane Pre-Release Design Review - The Pre-Release Design Review is the final design review of the completed backplane Release Package. All details of the engineering documentation being released are checked. The review is crucial, since any errors or discrepancies in the release package that are not found affect the fabrication and assembly of the first-piece backplane.

8.5 Chassis Design Process

Prior to chassis Preliminary design the mechanical and electrical designers review the proposal concept solution against the latest revised requirements. A new look is taken at the previous design and sub-contractors or co-contractors are consulted to explore the advantages of common approaches to packaging design and to determine that requirements that affect packaging have been met.

• Select Parts, Materials and Processes - The mechanical engineer prepares a list of the chassis parts, materials, and manufacturing processes required for the design, and notifies purchasing of any long-lead items needed. The source used for selection is the RASSP Reuse Database. If any new process is required, a process readiness activity must be successfully completed. This step is necessary to ensure that project schedules are not jeopardized by long-lead ordering cycles and/or development problems associated with the introduction of new processes.

• Perform Mechanical Design Analysis - Analyses of weight, stress, tolerances, and thermal distribution are conducted using appropriate models of the chassis.

• Establish Test Requirements - The mechanical, electrical, and manufacturing engineers determine the electrical and environmental test requirements and design or procure the needed test fixtures. Test plan documents are generated.

• Document Structure/Thermal Interface - At this time enough is known about the contents of the chassis to commit to an outline and structural mounting and thermal interfaces. For the design of the chassis to proceed without delay, we must provide firm information on maximum dimensions and dissipations to structural designers for the next higher assembly, if one exists.

• Document Harness Interface - At this point in the design cycle, we have sufficient data on signal flow and electrical inputs and outputs to establish connector types, quantities and locations, and possibly complete definition of the harness interface. For the harness design to proceed in a timely fashion, we must commit to connector locations and types as early in the chassis design cycle as possible.

• Determine Assembly Processes - Working with manufacturing producibility engineers, the mechanical engineer decides on the sequence of events in the assembly of the hardware, and prepares to document the detailed design. The final drawing package defines only the finished configuration of the hardware, but when properly documented, can indicate an assembly sequence that eliminates synthetic subassemblies which create added paperwork for the manufacturing planners.

• Conduct Preliminary Design Review - The electrical and mechanical engineers participate in this review. Peers, technologists, and responsible engineers from other disciplines review the design and make constructive suggestions for improvement. Others (producibility, sourcing, quality, reliability, etc.) participate as required to ensure cross functional support for the design.

• Perform Detailed Design of Chassis - Solid model layouts are finalized, based on the latest changes and models are reduced to the detail part level. The design is driven by stress, thermal, and survivability considerations, with the goal of optimizing weight and producibility. This step is essential to the proper functioning of the electronics during and after exposure to environments. The chassis must provide protection to the sensitive electrical parts and interconnections from the effects of shock, vibration, internal and external heating, radiation, and magnetic effects. Electrical and mechanical test procedures are also generated during this phase.

• Perform Analysis of Chassis - In this step we begin verifying the detailed design. We again perform thermal, stress, tolerance, and weight analyses and compare the results with subsystem and environmental requirements, to ensure that we established adequate margins to provide proper performance, even under worst-case conditions. Cable and harness designs are also finalized.

• Perform Top Assembly Detailed Design - This step integrates the chassis design with the elements of the parallel detail design activities (backplane and module) which are discussed in later sections of this document, into the assembly which is the end product. This step pulls together the lower level detail designs and verifies that they will work together mechanically to meet the intended assembly function. Potential interferences are checked, dynamic clearances determined, and access for tooling, wiring, and assembly processes is established so that manufacturing can proceed smoothly and test problems will be minimized.

  The top-level assembly is subjected to thermal, stress, EMI, shielding, dynamic, venting, weight, and other special analyses to assure that adequate margins have established to provide proper performance, even under worst case conditions.

• Prepare Release Package for Chassis - Next, the required documentation or release to manufacturing or to an external supplier is generated. Solid models of parts are converted to drawings. Detail drawings, assembly drawings, and parts lists are generated, in accordance with design and manufacturing standards and local documentation practices.

• Conduct Pre-Release Design Review - Electrical and mechanical designers (among many others) participate in this review which, if successfully completed, will affirm the readiness of the design for production. The review is conducted in accordance with local policy and procedures for formal internal reviews.

8.5.3 Chassis Fabrication, Assembly, and Unit Test

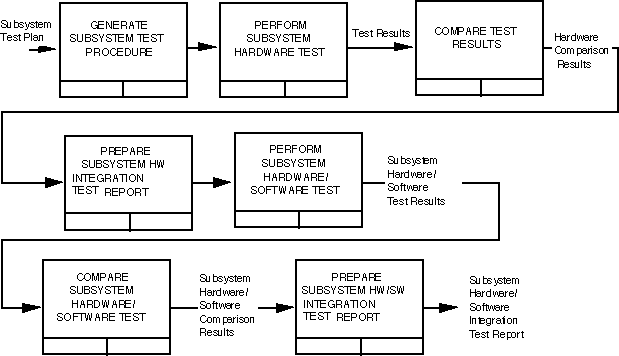

We use the subsystem test plan as a starting point. For each test identified at the subsystem level, we attempt to define a similar test at the multichassis level, although this will not always be possible. As in the subsystem test plan, the multichassis test plans identify, in qualitative terms, the inputs, conditions of test, outputs, number of samples, etc., for each test. They also identify the test equipment required and how it will be used. Block diagrams of equipment configurations are useful to clarify their intended use.

8.7.1 Use of VHDL in the Hardware Design Process

We develop VHDL structural models for the VHDL behavioral models that were developed during the architecture design process. These structural models show the partitioning and interconnection of architecture component modules. We develop a test bench and a VHDL behavioral model for each module, and each module is, in turn, further decomposed and partitioned into other modules, macro-cells, MCMs, ASICs, or COTS components. We continue this iterative process of decomposition and partitioning for custom components until the hardware functions can be described as RTL logic transformations within leaf-level VHDL behavioral models. We can then automatically synthesize the leaf-level models into gate-level netlists. The VHDL models of programmable units are designed to interpret the data files produced by the software design process to facilitate hardware/software co-simulation and codesign. During the partitioning process, we can identify some of the modules, MCMs, and ASICs as custom parts, while others are selected from COTS parts. For custom-developed parts, we develop VHDL models down to the ASIC level, with a fully functional behavior and bus-functional model describing each ASIC. For COTS parts, we develop or obtain only VHDL behavioral models.

The VHDL behavioral models describe the timing and functionality of the module, macro-cell, MCM, and/or ASIC. Timing data includes:

• Module, macro-cell, MCM, ASIC I/O
  - I/O timing constraints - I/O interface structures - I/O protocols - Signal strengths - Message types
• Module, macro-cell, MCM, ASIC processing latency
  - Data acceptance rate
• Module, macro-cell, MCM, ASIC stimuli response

Functionality data includes:

• Control strategies
• Task execution order
• Synchronization primitives
• Inter-process communication (IPC)

The test benches provide test procedures, stimuli, and expected results to verify that the design meets system requirements. The test benches are developed before, and are executed with, the behavioral models of the hardware designs during simulation. The design of test benches before component modeling supports the DFT methodology. The full-functional behavioral model forms the executable specification for a hardware design. We back-annotate the simulation results of the detailed hardware models to the higher level architecture models to make them precise.

Physical prototypes are designed, fabricated, tested and integrated with software per the program plan. The extent of the full system can range from a significant sub-assembly (i.e. a MCM or more typically a set of boards where each board type is present) to the complete system. Based upon these results the TSDs are updated with preliminary measurement data on fault population coverage. Design flaw data is collected based upon the extensive simulations of VP3 and the system prototype results. Preliminary results are collected on BIST coverage of manufacturing faults. If the program plan calls for a BIST demonstration, preliminary results are collected on BIST coverage of field support faults.

The generic test insertion process for each design entity is shown in Figure 8 - 7.

Testable COTS components should be used to the maximum extent practicable. In addition, the "Lead, follow, or get out of the way approach" to dealing with COTS is implemented. This involves adding, or using existing, DFT features to the design to deal with COTS. As illustrated in Figure 8 - 8, COTS devices possessing BIST features, such as the TI SN74BCT8244 (having a PRPG and PSA mode), are given a "lead" role, since they can lead a test process. COTS devices, such as the four non-boundary-scannable octal flip-flops are given the "follow role," since, while they cannot lead, they at least do not impede the BIST test flow originating at the boundary-scan octals. Finally, the RAM chips, being very complex, and having no test features, coupled with an inability to pass pseudorandom patterns through during RAM tests, must be relegated to the "get out of the way" role which means bypassing them during BIST mode using a output tri-stating approach.

Test domain analysis is performed to stretch the reuse of all DFT/BIST structures. An example of this concept is shown in Figure 8 - 9. In the example, the source of BIST stimuli (8244) is analyzed to determine how much of the board (and eventually the rest of the system) can be tested using the PRPG and the PSA elements in the 8244s. A minimum of four domains (1 - 4) are covered along with additional domains in the rest of the system. By adding loopback capabilities, fault isolation is improved; and the number of domains covered is doubled. Pseudorandom patterns emanate from the source 8244 and responses through the loopback are compressed in the parallel signature analyzer in the sink 8244. Test domain analysis can be used to stretch the limits of reuse across packaging levels, as well as across the same package level.

Checking for compliance for COTS sections requires definition of the fault model, such that the coverage is measurable, using non-structural simulation models for the black box COTS elements or by using simplified functional fault models.
