작성일: 2013.11.07
Overview | Documents | Training & Demos | Ordering
<< Overview >>
Microsemi's SmartFusion2 Starter Kit provides designers with access to SmartFusion2 system-on-chip(SoC) FPGAs, which integrate inherently reliable flash-based FPGA fabric, a 166 MHz ARM Cortex-M3 processor, advanced security processing accelerators, DSP blocks, SRAM, eNVM and industry required high-performance communication interfaces all on a single chip.
The SmartFusion2 starter kit supports industry-standard interfaces including Ethernet, USB, SPI, I2C and UART and includes a comprehensive breadboard to support unique design requirements. The kit can be used with Microsemi's Libero SoC v11.0 software, which includes a free Libero Gold license and comes preloaded with a uClinux demo. Emcraft Systems' Linux-based development environment is also supported. The SmartFusion2 device is available on an Emcraft Systems miniature (34mm x 59mm) mezzanine form factor system-on-module (M2S-SOM), which connects to the SOM-BSB-EXT baseboard. The kit is USB powered and includes FlashPro4 programming.
표1. "SmartFusion2 Starter Kit"에 들어있는 내용물 목록
| Quantity | Description |
|---|---|
| 1 | M2S-SOM SmartFusion2 system-on-module with M2S050-FG896 |
| 1 | SOM-BSB-EXT SmartFusion2 system-on-module baseboard |
| 1 | FlashPro4 JTAG programmer for programming and debugging of SmartFusion2 |
| 1 | USB 2.0 A male to mini-B Y-cable for UART/power interface (up to 1A) to PC |
| 1 | USB 2.0 A male to mini-B cable for connection of SmartFusion2 to PC in USB device ("gadget") role |
| 1 | Mini-B to USB 2.0 A female cable for connection of USB devices to SmartFusion2 |
| 1 | Ethernet cable |
| 1 | USB WiFi module |
| 1 | Leather case |

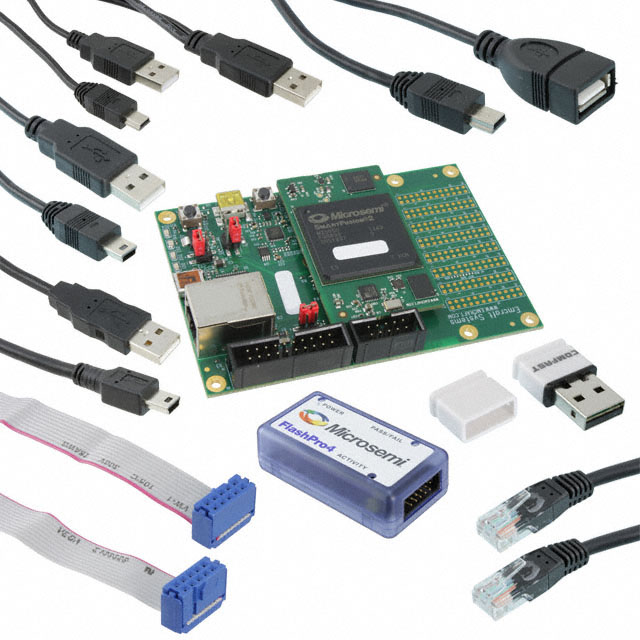

사진1. "SmartFusion2 Starter Kit"에 들어있는 내용물 사진
Note: This Kit also comes with a free Libero Gold software License.
Note: The SF2-STARTER-KIT-ES is RoHS compliant

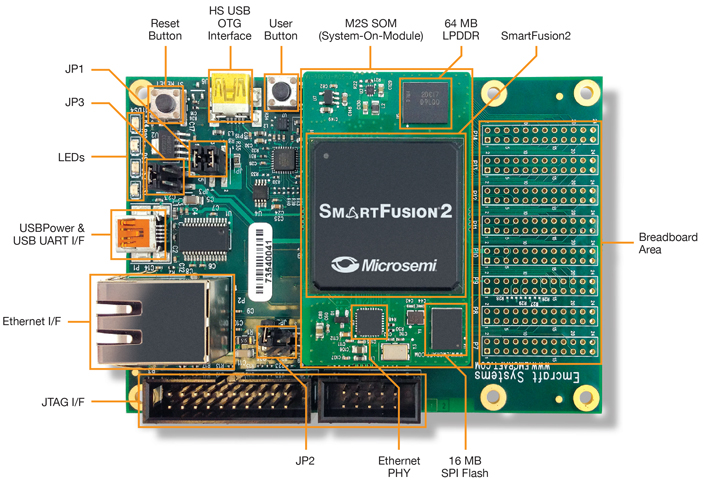

Hardware Feature Overview
- SmartFusion2 SoC FPGA in the FG896 package (M2S050T-FG896ES)
- JTAG interface, for programming of the SmartFusion2 device
- 10/100 Ethernet interface and RJ-45 connector
- USB OTG interface and mini-USB connector
- USB based Wi-Fi Module
- 64MB LPDDR, 16MB SPI flash
- User push-button connected to GPIO on the SOM
- Two user-controlled LEDs connected to GPIO on the SOM
- Breadboard area available for GPIO or FPGA I/O connection
- Power good LED indicating presence of the +3.3 V SOM power
- Reset push button, Reset-out LED
- On-module clocks
- Watchdog Timer (WDT)
- Serial console interface at UART CMOS levels
- Low power mode with fast wake-up times
- Depending on the design, can provide necessary power supply voltages (+5 V, +3.3 V, +1.5 V for power-optimized SOM operation) from external sources through dedicated pads on the breadboard.

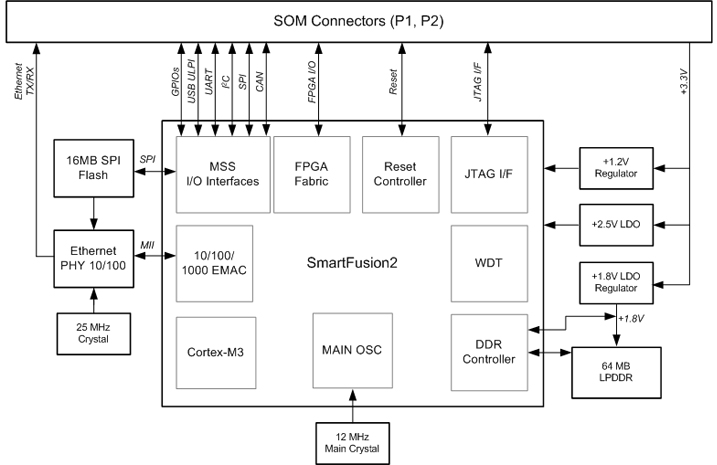

SmartFusion2 System-On-Module (SOM) Block Diagram

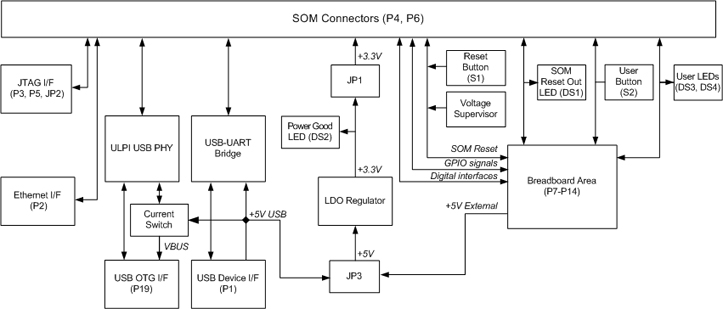

SmartFusion2 SOM Baseboard Block Diagram
<< Documents >>
Getting Started
Hardware Documentation
SOM-BSB-EXT Baseboard Hardware Architecture Specification  |
 |
278 KB | 7/2013 |
| SmartFusion2 SOM Hardware Architecture Specification | |
406 KB | 5/2013 |
Hardware Materials
| SOM-BSB-EXT schematics |  |
1/2013 | |
| SOM-BSB-EXT Mechanical Drawing | |
41 KB | 2/2013 |
| SOM-BSB-EXT Bill of Materials (BOM) | |
1/2013 | |
| SmartFusion2 symbol and footprint (Altium Designer 9.4) | |
12/2012 | |
| SmartFusion2 SOM schematics | |
4/2013 |
Software Documentation
| Linux Cortex-M User's Guide |
|
288 KB | 7/2013 |
| Libero SoC v11.0 User's Guide | |
24 MB | 2/2013 |
Software Materials
Customer Notifications
| Statement of Volatility for System-On-Module Baseboard | |
395 KB | 2/2013 |
| Statement of Volatility for System-On-Module Rev 2A | |
964 KB | 2/2013 |
<< Training & Demos >>
Webcasts
| SmartFusion2 DSP FIR Filter Demo Video (6 mins, 6/4/13) |
| Introducing SmartFusion2 Starter Kit for SoC FPGAs (59.58 mins, 1/31/13) |
| SmartFusion2 Overview (12.10 mins, 10/8/12) |
| Introducing SmartFusion2 SoC FPGAs (10/16/12) |
| Designing with SmartFusion2 SoC FPGAs (10/30/12) |
| Reducing Risks With Safety Critical Software (59.58 mins, 1/31/13) |
Tutorials
SmartFusion2 SoC FPGA DSP FIR Filter Demo User Guide
|
|
3 MB | 4/2013 |
SmartFusion2 SoC FPGA Adaptive FIR Filter Demo User’s Guide
|
|
4 MB | 5/2013 |
SmartFusion2 ARM Cortex-M3 Lab Guide Tutorial
|
|
2 MB | 4/2013 |
SmartFusion2 Fabric Lab Guide Tutorial
|
|
1 MB | 4/2013 |
SmartFusion2 USB Lab Guide Tutorial
|
|
2 MB | 4/2013 |
Application Notes
<< Ordering >>
Ordering Information
| Part Number | Description | List Price |
|---|---|---|
| SF2-STARTER-KIT-ES-2 | SmartFusion2 Starter Kit | $299 |
Sales Services
- Contact your local Microsemi Sales representative
- Search for Available Stock
- Request a Quote
Buy Now
- Buy online from Avnet-memec
- Buy online from Digikey
- Buy direct from Microsemi SoC Direct
- Buy direct from Arrow Electronics
- Buy direct from Future Electronics
Emcraft Linux Support
Request support by sending an email to a2f-linux-support@emcraft.com
http://emcraft.com/index.php/som/m2s - Additional documentation and resources available on the Emcraft site.
