There are three library population software development activities which must be supported:

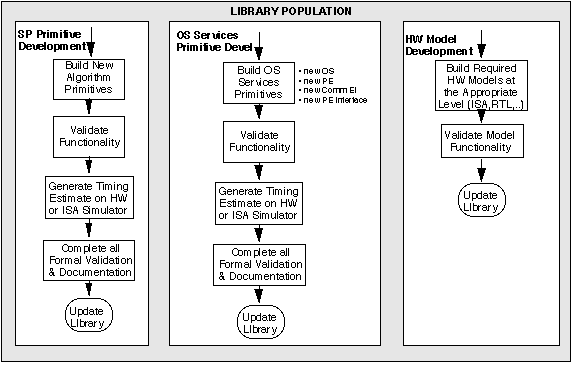

These three functions are shown in Figure 10 - 1 and discussed in the following paragraphs.
To build a new primitive, the primitive generation tool(s) should interact with the user (i.e., application programmer) to construct the prototype for experimentation in the architecture design process. Templates for prototype primitives are stored in the library to support the developer. These templates provide the encapsulation wrappers to interface with the various tools in the system. Approximate timing information for the primitive (for the processor type(s) of interest) must also be generated or estimated to support the architecture trade-off process. This timing information may be updated as the primitive validation proceeds.
After developing the prototype element, the architecture definition process can proceed. We can use the prototype element in the synthesis, evaluation, and trade-off of candidate architectures during hardware/software codesign.
We continue library population by validating the prototype element for permanent inclusion in the library. There is more to the library validation process than simply validating the prototype code. To be a permanent library element, the code must be generated as a domain-primitive suitable for constructing domain-primitive graphs that are architecture-independent. We must validate it over a broad range of test stimulus, document it as a permanent part of the library, and model it in terms of performance on all processor types in the library. This process is aided by templates maintained in the library.
As we validate the prototype code and add support for the code generation process and validate it, the new library element can be used in the autocode generation. It should be noted that library elements may be optimized, which could result in multiple implementations of the primitive being maintained in the library. For some processors, it may be appropriate to optimize the primitive in assembly language or microcode to maximize performance. Translations of the domain-level primitive to the target processors of interest will be maintained in the library in the form of target processor mappings.
In addition to validating that the code produced is functionally correct, the validation process must produce the necessary documentation elements that are also maintained in the library. This documentation should include the test suites used and the resulting test report.
Adding a non-computational architectural element, such as a communication element (e.g., cross bar switch), processor interface, or I/O interface, may require modifications or additions to the application support software maintained in the reuse library. In many cases, the new element requires additions or modifications of operating system kernel support functions, such as drivers or mapping tables, which provide the operating system services to the applications.
The addition of a new operating system requires that all operating system services that are assumed to be available for any processor of interest must be generated for each processor type for which the new operating system is intended for use. We assume that the operating system vendor has provided the operating system for one or more specific processors, and that only the operating system services required to support the application program interface to the run-time system are required.
When we insert a computational element as a new architectural element, we assume that the required HOL compiler(s) is available for the processor. In the RASSP methodology, the atomic computational element may be any general-purpose processor or DSP that is supported by a HOL compiler and/or assembler.
Adding a new computational element requires that we modify other existing library information, or add new library functions. First, the functional performance of all application-primitive elements intended for the new computational element must be verified; that is, they must compile and execute the test suite to produce the correct results. To provide the information required for the hardware/software codesign process, we must update the application primitives and the operating system services elements to incorporate timing estimates for the new computational element. This process must be performed for all primitives in the library available for the new computational element. In addition, to support automated generation of software for the target hardware, an operating system that provides the standard set of services required to support the methodology must be validated for the new computational element. Specialized microcoded functions (such as math libraries) for the new element must also be incorporated into the library so that primitives use the optimum code when translated and compiled for the new computational element.
10.0 Library Population
When any of the required support components are not present in the library, we cannot proceed with the design without at least defining a prototype element. We call the process of adding any component function to the library, 'library population'. When the first RASSP example is designed there will exist, by design, a sufficient set of primitives and components in the library to support the example. However, this set must be extended over time to accommodate new technology and applications. The methodology supports the ability to add or modify components of this library. Successful application of the RASSP concept depends upon the ability to perform the library population rapidly and economically so that the project development timelines and cost are not adversely affected. It is important to note that a complete library component is not needed for all the design phases. The methodology allows the design process to proceed in stages, along with the library population effort, to complete the library description. We accomplish this by permitting prototyping of primitives for inclusion in the library as a prototype element. The prototype element may then be used in the hardware/software codesign process to perform high-level architecture trade-off studies during architecture selection. In reality, we can early (based upon the algorithmic processing flows developed during the system design process) that we require new primitives for the application. In fact, application-primitives may be prototyped during system design to simulate the functionality of the required processing. After being confirmed as a desirable primitive, we must validate the prototype element for permanent inclusion in the reuse library. We can perform this validation process in tandem with other portions of the development.
10.1 Signal Processing Primitive Development
We anticipate instances during the architecture definition process where signal processing functions desired by the designer will not be available in the library. This may be recognized at any time during the design process from early systems analysis on through the architecture process. Since the algorithms required to implement the application drive hardware/software codesign, it is most likely that we will recognize the need for new primitives early. The frequency of these instances will diminish over time for a given application domain as the library is continually extended. There are two ways that a new primitive can be prototyped. First, we can construct the new algorithm hierarchically from more elementary library elements to allow an approximate design to proceed with the understanding that the eventual implementation may have to be optimized for run-time by combining these primitive operations into a new primitive. Second, we can implement the new primitive as a HOL description of the algorithm.
10.2 Operating System Services Primitive Development
There are four instances where we must generate or modify operating system services. These include adding a new operating system, a new processing element, a new communications element, or a new processor interface.
10.3 Hardware Model Development
When new hardware elements are required in the design process, we must develop VHDL models suitable for use by the various tools operating at different levels of abstraction. This could be a new signal processor or a custom hardware design. Ideally a new signal processor is supported by appropriate models from the manufacturer, but that is not always the case. In the case of a custom hardware element, it may be necessary to develop a high-level performance model for use in the architecture design process, as well as more detailed models suitable for detailed analysis and synthesis. Model generation tools will simplify the process and reduce model generation time.
