QuickCores FPGA-8051 IP Core...




FPGA-Embeddable Microcontrollers
with Real-Time JTAG Debugging

FPGA-8051

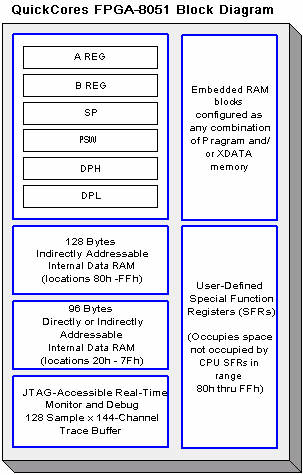

FPGA-8051 General Description
Available in both Verilog netlist and RTL source form, QuickCores FPGA-8051 is 100% object code compatible with the industry standard 8051. But there are some significant architectural differences which lend QuickCores FPGA-8051 design to implementation in FPGAs. These architectural differences include a three-stage instruction pipeline, single-clock design, and inherent real-time monitor and debugging capability.

Single Clock, Three-Stage Pipeline Design
QuickCores FPGA-8051 architecture is based on a single-clock, three-stage instruction pipeline design. This means that unlike the industry standard 8051 where it takes at lease 12 clocks to execute a single-byte instruction, the QuickCores FPGA-8051 can do it in one clock.

Real-Time Monitor and Debug Architecture
QuickCores FPGA-8051 architecture is adapted to include a built-in real-time monitoring a debug capability. The real-time monitor architecture gives the user the ability to examine and edit the 8051's memory and registers on-the-fly and without any software overhead on the target side (since it's all done in hardware). Communication with the core's on-chip debug logic is typically by way of a JTAG connection. Real-time monitoring and debug functions that are supported include: download, examine, edit program/data memory and registers, h/w and s/w breakpoints, single-steps (including real-time single-steps while other processes continue), real-time trace buffer with time-stamp, four-level event sequencing/triggering, event counters, and on/off trace control.

User-Defineable SFR Block
To enable easy customization, the 8051 Special Function Register (SFR) block is partitioned into the CPU SFR block and the User SFR block with the later being instantiated at the top level of the design. All the required CPU hooks are provided in the User SFR module ports. Included in the FPGA-8051 netlist library are the dual 16-bit counter/timer module, interrupt controller, 8-bit parallel port, standard serial port, and DAC7512 serial port. Example User SFR modules written in Verilog are provided in the netlist library and serve as a guide for customizing your own 8051 microcontroller



Download FPGA-8051 CORES
This Verilog netlist is generic in that they can be synthesized with virtually any Verilog synthesis tool including Synplicity, Synopsys and ALTERA's free Quartus II Web Edition software. This core have been implemented successfully in Actel ProASICPLUS, ALTERA Cyclone and QuickLogic Eclipse II FPGAs. This core have a built-in, JTAG real-time monitoring and debug capability which is enabled when the "debug.v" module is instantiated in the top level design

ÆÄÀϸí: Q8051.zip (34,513 bytes)

Download Brief Sheet of FPGA-8051 Soft Core Real-Time Development Kit

For Actel ProASICPLUS ÆÄÀϸí: ProASIC_8051_brief.pdf (572,856 bytes)
For ALTERA Cyclone ÆÄÀϸí: cyclone144.pdf (801,511 bytes)

TEKNOTES
Configuring Keil Software uVision2 IDE to work with QuickCores FPGA-embeddable 8051 microcontrollers.

ÆÄÀϸí: Keil_QC_BV.pdf (392,527 bytes)
ÆÄÀϸí: keilqc8051.exe (6,459,232 bytes)
