Synopsys Simulation and Synthesis Tutorial

Account Setup & General Information

1. Copy the following files to your home directory:

   • .synopsys_dc.setup
   • .synopsys_vss.setup
2. Concatenate the following to your .bashrc file:
   bashrc_update.txt


   NOTE: If in you are setting a value for PATH in your .bashrc, make sure you are doing so by using:

   PATH=$PATH:(rest of yourpath here):.

3. The tools we will be using are part of the Synopsys package. All of the tool we will be using are accessible only from the computer named core.cs.ucr.edu. Therefore, in order to use these tools you must logon to core using ssh (e.g., ssh -l yourlogin core.cs.ucr.edu).
4. The following is a list of program that you will be using to perform simulation and synthesis of your designs:
   • vhdlan: syntax checking and design analysis
   • vhdldbx: simulator
   • dc_shell: synthesis tool

Simulation

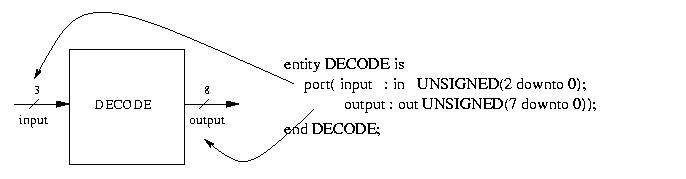

1. Design Entry: The first step in using VHDL for hardware design is the design entry. This step can be accomplished using the text editor of your choice. For our example simply download the file decode.vhd. This file contains a single entity named DECODE which is a 3-to-8 decoder. Below is a picture of the 3-to-8 decoder and its entity declaration. It also illustrates how the port declarations correspond to the inputs and outputs of the entity.

2. Work directory: All of the files needed to simulate you design will kept in a direcotry named "work". Therefore, the first step is to create a directory named "work".
3. Syntax checking: Use vhdlan to perform syntax checking and design analysis. vhdlan should be invoked using the following command.

   vhdlan decode.vhd

   This file contains one small error that you should be able to quickly correct. Make the correction and re-analyze the file.

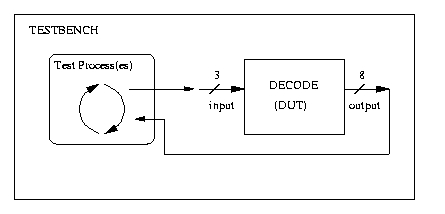

4. Testbench creation: What is a testbench? A testbench is an entity with no inputs or outputs that has a single instantiation of the design under test (DUT) and a process or multiple processes that will control the inputs of the DUT and verify it works correctly by analyzing its outputs. The image below shows the simple testbench entity used for testing the DECODE example.

   A testbench should be robust such that it provides a high level of confidence that the design being tested works correctly. There is more discussion on testbenches later in this tutorial. For now, you can download a very simple testbench decode_tb.vhd. You must also analyze the testbench in order to simulate it.

   One important aspect of any testbench is the configuration of the testbench. In the file decode_tb.vhd, at the end you will see the following code:

       configuration CFG_TB of DECODE_TB is
           for TB
           end for;
       end CFG_TB;

   This configuration must be used in order to properly simulate our design.
5. Simulation: We can now simulate our design in the following manner:
   1. Run vhdldbx

      NOTE: You will see many errors relating to key bindings. Simply ignore these errors.

   2. You must now choose the appropriate configuration of the testbench you have created. For our example select CFG_TB. This will open the Synopsys VHDL Debugger.
   3. We now want to add the signals in our testbench and/or design that need to be traced. So first we want to select "Hierarchy Browser" from the "Misc" menu. This will open the VSS Hierarchy Browser.
   4. You should see a green arrow pointing at the top level entity you decided to simulate. Clicking next to this arrow will reveal any components which comprise the entity. Select each signal that you wish to trace and double-click on it. This will bring up the Synopsys Waveform Viewer, and the bottom half of the VHDL debugger will indicate that the signal is being traced.

      NOTE: If the Waveform Viewer opens but no signals are present then you should close the Waveform Viewer and retrace your signals. Continue this procedure until your signals have been traced successfully.

      For our example open the entity named DECODE_TB and trace the signals input and output.
   5. We now want to simulate the design we enter the simulation time in the VHDL Debugger and clicking on "Run".

      NOTE: If you accidently click "Run" without entering a time, it will run until you click on "Intr", which will stop it.

      For our example, run the design for 100 ns.
   6. We should see the correct simulation results in the Waveform Viewer.
   7. If you wnat to see the input and output of the design in the waveform, you must first add a cursor, by selecting "New at Center" form the "Marker" menu in the Waveform Viewer. You can also create a marker by typing Ctlr-m. Each marker can be moved by dragging it to the desired location.

Good Testbench Construction

In order to test a design to ensure that it is working correctly a "good" testbench should be constructed. However, what makes a testbench "good"? The ideal testbench would provide an exhaustive test of the design. In other words, it would test every possible combination of input for every possible state of the design. It is clear to see that this will become infeasible for anything but small combinational designs. Therefore, the following is a list of guidelines for creating testbenches.

1. Asserts: assert statements ar an essentail part of any testbench. They are used to test the value of a signal, port, or variable against the desired value. In the testbench decode_tb.vhd you will find the assert statement:

       assert (OUTPUT_O = 1 ) report "Error Case 0" severity error;

   In this assert statement, the condition being tested is OUTPUT_O = 1. If this condition is not met, then the simulator will print "Error Case 0". It will also halt simulation because the severity specified was "error". If instead you wanted simulation to continue, you can set the severity as "warning" which will report the assert but continue with simulation.
2. Testcases: A testbench should test as many cases as possible in order to create a high level of confidence. Thus, in a combinational design, the upper and lower limits of the operations should be test as well as many cases in the middle. Similarily, in a FSM, we should ensure that all states of the design are tested. we cannaot test all possible cases but, again, testing boundary cases is imporant.

   For example, consider a 4-bit adder. We should test the boundaries of the adder, namely 0000 + 0000 and 1111 + 1111. We should also test many values in the middle, such as 0001 + 1001, 0101 + 1010, etc.

Synthesis

1. All synthesis and synthesis realted operations will be performed using Synopsys Design Compiler. To start Design compiler run dc_shell.
2. We now need to read in and analyze the design we wnat to synthesize, for our example, we will enter the following command.

   analyze -f vhdl decode.vhd

   This will read in and analyze the design specified. The -f flag is used to specify the format of the design be read, in this case VHDL.
3. Now, we will elaborate our design. Elaborate will convert our design from the VHDL description into a Synopsys specific format that is required for synthesis. This is done by enterign the following command.

   elaborate DECODE

   NOTE: The design that you are elaborating is the name of the entity of your design. This name is case sensistive.

4. Now the fun part. At this point we are ready to actually synthesize our design. The compile command will actually synthesize our design into a gate-level design that we can then output. The is invoked as follows.

   compile -map_effort low

   The purpose of incremental mapping is not important write now but it should be used. The map effort flag is used to indicate the level of compiling effort that should be performed in terms of area constraints. Therefore, low effort indicates that no attempts should be made to reduce the area. This will greatly reduce synthesis times.
5. Once the actual synthesis is completed, we need to create some needed settings before we can output the synthesized design. The following commands are used to do just that.

   change_names -rule vhdl
   vhdlout_architecture_name = "SYN"
   vhdlout_use_packages = {"IEEE.std_logic_1164", "IEEE.std_logic_arith.all", "IEEE .std_logic_textio.all", "lsi_10k.COMPONENTS.all"}

   The change names command will chnage the internal named of the design to correspond to the VHDL naming conventions. The following two command specify some VHDL attributes that we need in order to simulate the gate-level design.
6. We are now ready to output our design. We will be creating to output files of our design. One of the output files is the VHDL description of the gate-level design. The second file is also the gate-level description, but the format of the file is the internal format the Design Compiler uses. This second file is used in case we want to gather any design metrics such as area, timing, etc. To output these files the following two commands can be used.

   write -f vhdl -hierarchy -output "decode_gate.vhd"
   write -f db -hierarchy -output "decode_gate.db"

7. Now that we have completed synthesis we can exit Design Compiler by entering exit.
8. Instead of manually enetering in all of the commands in dc_shell we can use a scripts whcih contains all of the commands. Thus, we provide a generic script that will need to altered for entity and architectuer naming taht will automatically run the required commands for synthesis. The script example_syn.scr can be run by entering the following command form within dc_shell:

   include example_syn.scr

9. No, we are still not done. We need to make a minor correction to the VHDL gate-level desing. Open decode_gate.vhd and comment out the following line.

   type UNSIGNED is array (INTEGER range<>) of STD_LOGIC;

10. Now we are done with synthesis and can move onto simulating the gate-level design.

Simulating Gate-level Design

1. Once again we need to analyze our design and our testbench as was done before, but now we will analyze the gate-level design instead. The testbecnh used before will again be used to test our new design.
2. We can now simulate our design using vhdldbx as done before. However, we can no longer view the signals internal to our entity because they no longer exist in the same manner as before. Instead, we are limited to only the ports of the entity we synthesized. Go ahead and trace the inputs and output of DECODE.
3. We can now enter the simulation tiem into the VHDL Debugger and simulate the design for this time.
4. Success: If all goes well, then we should not see any assert errors or warnings in our desing.

Congratualtions
