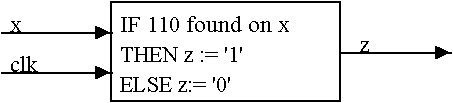

ENTITY moore_110_detector IS PORT (x, clk : IN BIT; z : OUT BIT);
END moore_110_detector;
--

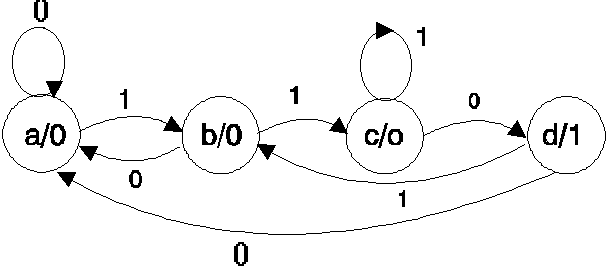

ARCHITECTURE behavioral OF moore_110_detector IS
TYPE state IS (reset, goto1, goto11, goto110);
SIGNAL current : state := reset;
BEGIN
PROCESS(clk)
BEGIN
IF clk = '1' THEN
CASE current IS
WHEN reset =>
IF x = '1' THEN current <= goto1;
ELSE current <= reset; END IF;
WHEN goto1 =>
IF x = '1' THEN current <= goto11;
ELSE current <= reset; END IF;
WHEN goto11 =>
IF x = '1' THEN current <= goto11;
ELSE current <= goto110; END IF;
WHEN goto110 =>
IF x = '1' THEN current <= goto1;
ELSE current <= reset; END IF;
END CASE;
END IF;
END PROCESS;
z <='1' WHEN current = goto110 ELSE '0';
END behavioral;
ENTITY dff IS
PORT(d : IN BIT; clk : IN BIT; q : OUT BIT);
END dff;
--
ARCHITECTURE dataflow OF dff IS
BEGIN
b:BLOCK (clk = '1' AND NOT clk'STABLE)
BEGIN
q <= GUARDED d AFTER 11 NS;
END BLOCK;
END dataflow;

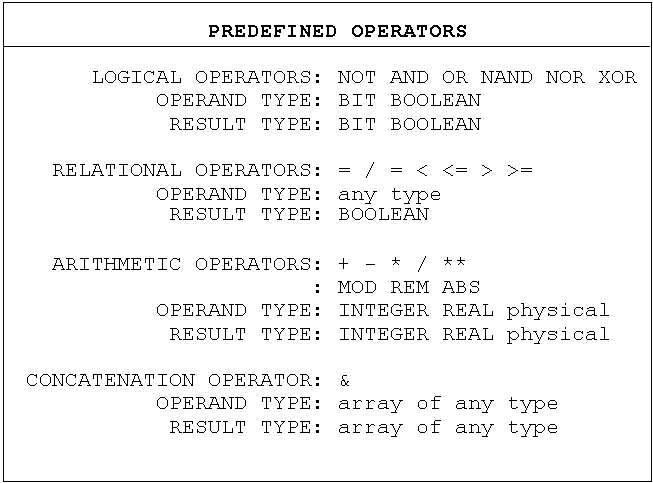

ENTITY logicfunction_f IS
PORT (i1, i2, i3 : IN BIT; o1 : OUT BIT);
END logicfunction_f;
--
ARCHITECTURE dataflow OF logicfunction_f IS
BEGIN
o1 <= ((NOT i1) AND i2) OR ((NOT i2) AND i1 AND i3) AFTER 8 NS;
END dataflow;
ENTITY logicfunction_g IS
PORT (i1, i2, i3 : IN BIT; o1 : OUT BIT);
END logicfunction_g;
--
ARCHITECTURE dataflow OF logicfunction_g IS
BEGIN
o1 <= (i2 AND (NOT i1) AND (NOT i3)) OR (i2 AND i1 AND i3) OR
((NOT i2) AND (NOT i1) AND i3) AFTER 8 NS;
END dataflow;
ENTITY logicfunction_z IS
PORT (i1, i2, i3 : IN BIT; o1 : OUT BIT);
END logicfunction_z;
--
ARCHITECTURE dataflow OF logicfunction_z IS
BEGIN
o1 <= (i2 AND (NOT i1) AND (NOT i3)) AFTER 8 NS;
END dataflow;

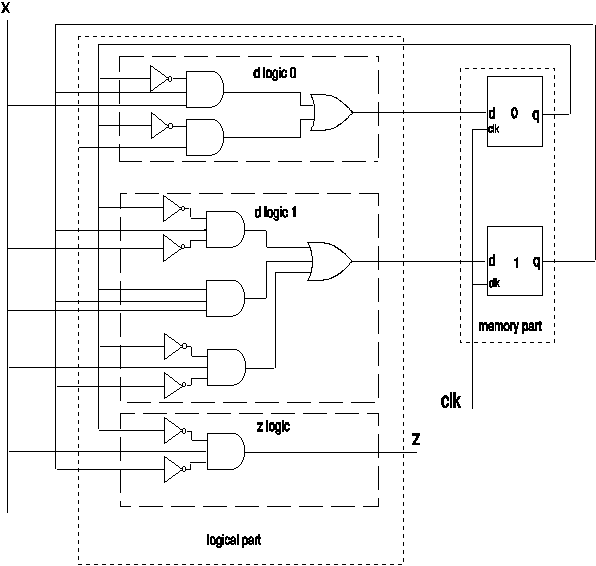

ENTITY logical_part IS
PORT (x, q0_in, q1_in : IN BIT; d0_out, d1_out, z_out : OUT BIT);
END logical_part;
--
ARCHITECTURE structural OF logical_part IS
COMPONENT c1 PORT (i1, i2, i3 : IN BIT ; o1 : OUT BIT);
END COMPONENT;
FOR d_logic0 : c1 USE ENTITY WORK.logicfunction_g (dataflow);
COMPONENT c2 PORT (i1, i2, i3 : IN BIT; o1 : OUT BIT);
END COMPONENT;
FOR d_logic1 : c2 USE ENTITY WORK.logicfunction_f (dataflow);
COMPONENT c3 PORT(i1,i2,i3 : IN BIT; o1 : OUT BIT);
END COMPONENT;
FOR z_logic :c3 USE ENTITY WORK.logicfunction_z(dataflow);
BEGIN
d_logic0: c1 PORT MAP(q0_in,q1_in,x,d0_out);
d_logic1: c2 PORT MAP(q0_in,q1_in,x,d1_out);
z_logic : c3 PORT MAP(q0_in,q1_in,x,z_out);
END structural;
ENTITY memory_part IS
PORT(d0_in,d1_in,clk : IN BIT;q0_out,q1_out : OUT BIT);
END memory_part;
--
ARCHITECTURE structural OF memory_part IS
COMPONENT m
PORT(d : IN BIT; clk : IN BIT; q : OUT BIT);
END COMPONENT;
FOR dff0, dff1 : m USE ENTITY WORK.dff (dataflow);
BEGIN
dff0 : m PORT MAP (d0_in, clk, q0_out);
dff1 : m PORT MAP (d1_in, clk, q1_out);
END structural;

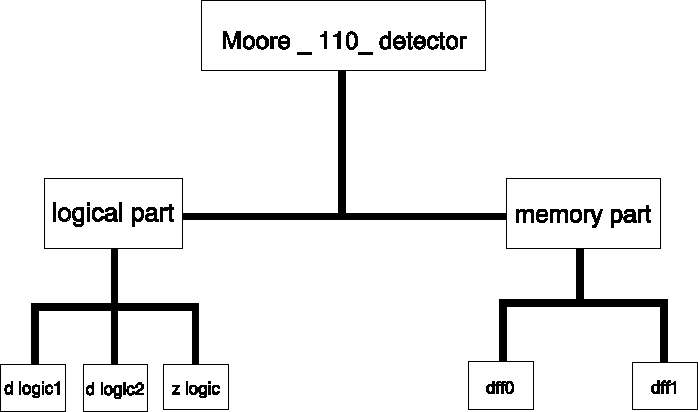

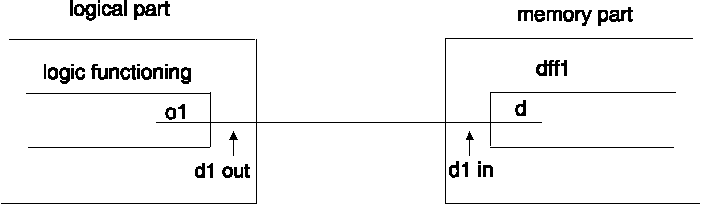

ARCHITECTURE structural OF moore_110_detector IS
COMPONENT
l PORT (x, q0_in, q1_in : IN BIT; d0_out, d1_out, z_out : OUT BIT);
END COMPONENT;
FOR lpart : l USE ENTITY WORK.logical_part (structural);
COMPONENT
m PORT (d0_in, d1_in, clk : IN BIT; q0_out, q1_out : OUT BIT);
END COMPONENT;
FOR mpart : m USE ENTITY WORK.memory_part(structural);
SIGNAL conn0, conn1, conn2, conn3 : BIT;
BEGIN
lpart : l PORT MAP (x, conn0, conn1, conn2, conn3, z);
mpart : m PORT MAP (conn2, conn3, clk, conn0, conn1);
END structural;

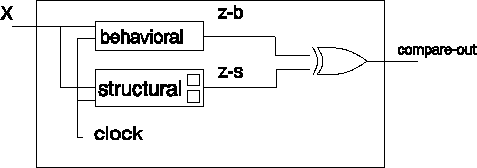

PROCEDURE serial_data_generation
(SIGNAL target : OUT BIT; int : IN INTEGER; t : IN TIME) IS
VARIABLE i : INTEGER;
VARIABLE bit_val : BIT;
VARIABLE current : TIME :=100 NS;
BEGIN
i := int;
WHILE i >0 LOOP
IF (i MOD 2 = 1) THEN
bit_val := '1';
ELSE
bit_val := '0';
END IF;
target <= TRANSPORT bit_val AFTER current;
current := current + t;
i := i/2;
END LOOP;
END serial_data_generation;
