Design Laboratory Kit
 |
The Altera® University Program offers
participating universities a University Program Design Laboratory Kit with the
complete MAX+PLUS® II design software. This
kit (shown in Table 1) provides a comprehensive solution to the programmable
logic design challenge. |
University Program Design Laboratory Package
| Table 1. University Program Design Laboratory Package |
| UP2 Design Laboratory Kit |
- MAX+PLUS II development software, version 10.1
- UP2 development board with a FLEX 10K®EPF10K70 device
- ByteBlaster™ download cable
- Power supply
- Rapid Prototyping of Digital Design textbook by James O.
Hamblen & Michael D. Furman
|
UP2 Development Board

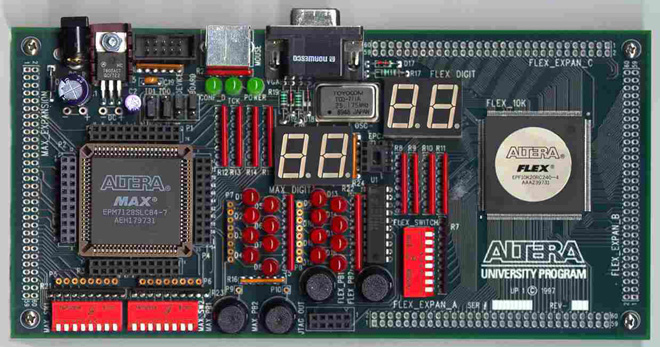

- Altera University Program Design Laboratory Package에 포함된 UP1/UP2 Development Board의 실물사진입니다...
- UP1 Development Board와 UP2 Development Board의 차이는 Board에 장착된 EPF10K Device의 LE갯수에의해 구분됩니다... EPF10K20이 장착된 Board가 UP1 Development Board이고, EPF10K70이 장착된 Board가 UP2 Development Board입니다...
- 이 Board의 회로도는 아래 "Related Links"란에 있습니다...
Related Links
- UP2 Education Board's Schematic
- 파일명: UP2_board_schematics.zip (2,563,785 bytes)
|
|
|
